Clearance

CV630-ND3-DEMO

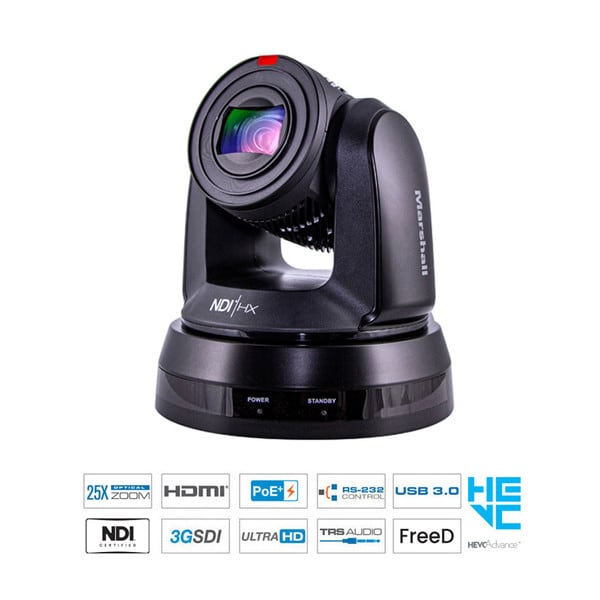

25x UHD30 NDI® HX3 PTZ Camera

UPC # 801813234695

$1,519.20

Qty	Price

DEMO STOCK

The Marshall CV630-ND3 PTZ camera captures crisp UHD video combined with smooth PTZ camera positioning and 25X optical zoom for a versatile NDI® networked video solution. NDI® HX provides low latency, high quality, frame-accurate video, and audio in real time to NDI® workflows.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

CV630-ND3 / CV630-ND3 Specifications
Model Name	CV630-ND3
Color	Black
Sensor	8MP CMOS (IMX317)
Video Format	2160p : 59.94 / 50 / 29.97 / 25 1080p : 59.94 / 50 / 29.97 / 25 720p : 59.94 / 50 / 29.97 / 25 1080i : 59.94 / 50
Video Output (HD) Interface	3G-SDI / HDMI / Ethernet / USB3.0
Optical Zoom	25x
Horizontal Viewing Angle	68
Aperture	F1.5~F3.4
Focal Length	4.8~120.5(mm)
Shutter Speed	1/1 ~ 1/10,000 sec
Minimum Object Distance	1.5m
Focus System	Auto, Manual, Smart AF
Gain Control	Auto, manual
White Balance	Auto, manual
Exposure Control	Auto, manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	256
Control Interface	RS-232 / RS-422 / Ethernet / USB 3.0
Control Protocol	VISCA / VISCA IP / PELCO D / ONVIF / UVC/CGI
Tally Light	Yes
IP Protocol	NDI\|HX3 / NDI\|HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT
IP Streaming Output	HX3: 1080P , OK HX2: 1080P/4K , OK RTSP : HEVC 4K 59.94fps H.264 1080p 59.94fps H.264 640x360 29.97fps
PoE	PoE+ (IEEE802.3at)
Video Compression	H.265/H.264
Audio Input	Line In/MIC In , Phone Jack 3.5mm x1
Audio Output	Ethernet / 3G-SDI / HDMI / USB 3.0
IR Receiver	Yes
IR Remote Control	Yes
Power Consumption	PoE : 18W DC In : 16W
Weight	2 kg
Dimensions	174x186x190
Operating Temperature	0 °C to 40 °C
Storage Temperature	-20 to 60 °C
