  • 17.3" Modular Design Monitor Desktop (Demo Unit)
Clearance

V-MD173-DT-DEMO

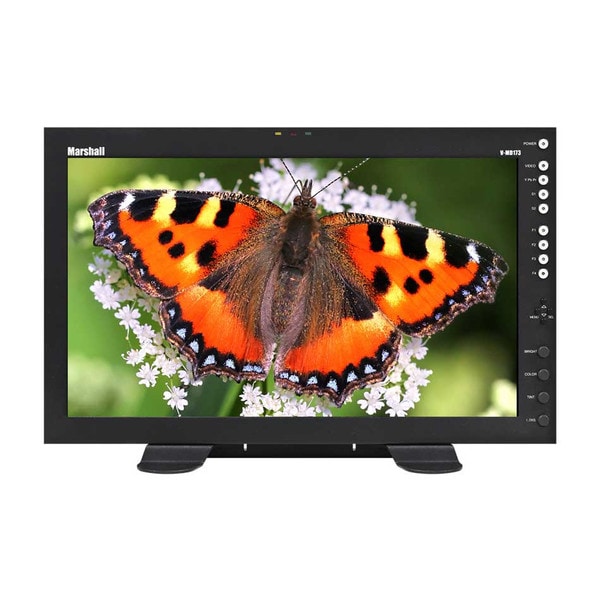

17.3" Modular Design Monitor Desktop (Demo Unit)
UPC # 801813194616
$1,057.50

DEMO STOCK

The V-MD173 is part of Marshall Electronics' extensive MD series of rack mount monitors. MD Series monitors offer a flexible modular solution to system integration. These rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

V-MD173 specifications
PanelNumber of Panels1
Panel Size17” Diagonal
Resolution1920 x RGB x 1080
Aspect Ratio16:09
Active Area381.888 x 214.812 mm
TypeLCD Panel
Brightness400 cd/m²
Contrast600:1
Color GamutYUV, RGB
Viewing Angles (CR>=10)160° x 160°
Backlight typeLED
Adjustable BacklightYes
FeaturesVideo Formats1080p/1080i/720p/625i/525i
Loss of Input CurtainYes
Color TemperatureD65, D55 and D93
H/V Delay Yes
Under scanYes
IMD FunctionsYes
False ColorYes
Peaking FilterNo
HDMI CSC AutoYes
HDMI Ratio AutoYes
Pixel to PixelYes
Pre-set Gamma pointsYes
Self-SensingYes
Number1
Modular Input Slot2
Re-clocked/Re-ShapedYES
Video Input ConnectorsCVBSYes
YPbPrYes
SD-SDIOptional Module
HD-SDIOptional Module
3G-SDIOptional Module
HDMIOptional Module
DVI-IOptional Module
OpticalOptional Module
Video Output Connectors CVBSYes
YpbPrYes
SD-SDIOptional Module
HD-SDIOptional Module
3G-SDIOptional Module
HDMINo
MechanicalControls on front PanelYes
User-Defined Function ButtonsYes
RotoMenu™ ControlNo
Pivot AngleYes
Handles/Rack EarsYes
PowerVoltage12 VDC
Consumption3.5 AMP@ 12VDC (32W Max)
Power SwitchYes
Connector4-Pin XLR
ComplianceComplianceCE approved

Environmental

Operating Temperature (C°)32°F to 104°F
Storage Temperature (C°)-4°F to120°F
Rack Unit dimensions17.15”W x 10.45”H x 2.00” D
Weight (Main Body)8.75 lbs
Vesa Mount Pattern75mm
