V-MD72-HDSDIX2-DEMO

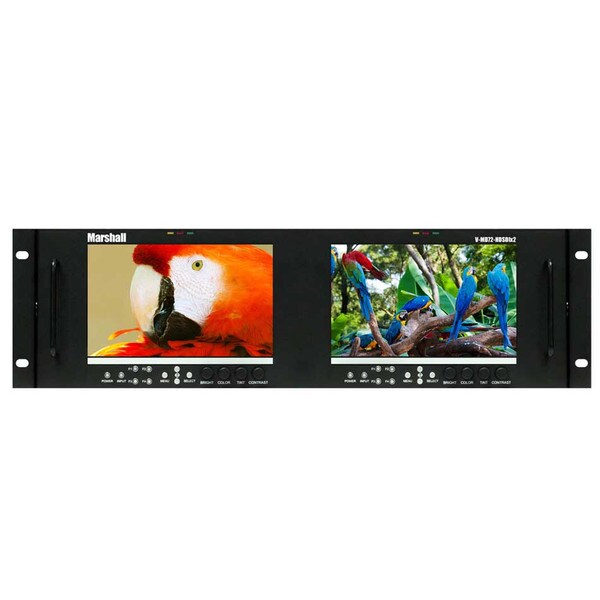

Dual 7" 3RU Rack Mount Monitor with HD-SDI Modular Inputs
UPC # 801813194340
| Panel | Number of Panels | 2 |
| Panel Size | 7” Diagonal | |
| Resolution | 800 x 480 | |
| Aspect Ratio | 16:10 | |
| Active Area | 152.40 x 91.44 mm | |
| Type | LCD Panel | |
| Brightness | 450 cd/m² | |
| Contrast | 600:1 | |
| Color Gamut | YUV, RGB | |
| Viewing Angles (CR>=10) | 140° x 100° | |
| Backlight type | LED | |
| Adjustable Backlight | Yes | |
| Features | Video Formats | 1080p/1080i/720p/625i/525i |
| Loss of Input Curtain | Yes | |
| Color Temperature | D65, D55 and D93 | |
| IMD Functions | Yes | |
| Tally | Yes | |
| False Color | Yes | |
| Peaking Filter | No | |
| Pixel to Pixel | Yes | |
| Pre-set Gamma points | Yes | |
| Self-Sensing | Yes | |
| Modular Input Slot | 1 Per panel | |
| Re-clocked/Re-Shaped | Yes | |
| Video Input Connectors | CVBS | No |
| YPbPr | No | |
| SD-SDI | Yes | |
| HD-SDIx2 | Yes | |
| Video Output Connectors | CVBS | No |
| YpbPr | No | |
| SD-SDI | Yes | |
| HD-SDI | Yes | |
| Embedded Audio from SDI | Yes | |
| Control Inputs | Input Status Display | Yes |
| Tally / GPI | Tally | |
| RS-485/422 w/ Loop-Through | No | |
| Ethernet | Yes | |
| Features | Controls on front Panel | Yes |
| User-Defined Function Buttons | Yes | |
| RotoMenu™ Control | No | |
| Pivot Angle | Yes | |
| Handles/Rack Ears | Yes | |
| Power | Voltage | 12 VDC |
| Consumption | 3.0A @ 12VDC (30 W) | |
| Power Switch | Yes | |
| Connector | 2-Pin Twist-Lock | |
| Compliance | Compliance | CE approved |
| Environmental | Operating Temperature (C°) | 32°F to 104°F |
| Storage Temperature (C°) | -4°F to120°F | |
| Dimensions | Rack Unit dimensions | 18.9"W x 5.2"H x 1.2"D |
| Weight (Main Body) | 6.50 lbs | |
| Protective screen | No |
