  • Dual 7" Rackmount Monitor with 12G-SDI and HDMI Inputs
Clearance

V-702W-12G-DEMO

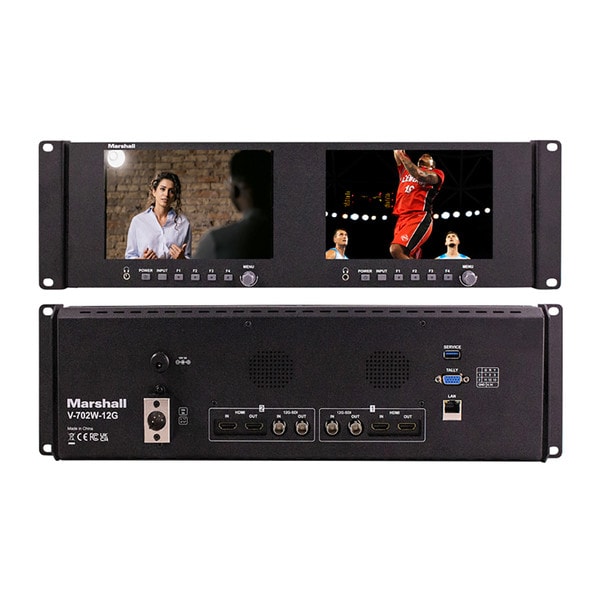

Dual 7" Rackmount Monitor with 12G-SDI and HDMI Inputs
UPC # 801813233810
$1,532.15
Quantity discounts available
QtyPrice

DEMO STOCK

The Marshall V-702W-12G dual 7" LCD Display is a feature-packed, solution perfect for remote production trucks, fly-packs, control rooms, routing rooms and countless other video system applications. Based on the Marshall V-702W model, the 12G-SDI inputs provides low latency and eliminates the need for outboard down conversion.

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

V-702W specifications
Number of Panels2
Screen2" x 7" LCD
Chassis3 RU
Aspect Ratio16:10
Viewing Angle(H) +80/-80° ; (V) +80/-80°
Brightness (in cd/m2)450 cd/m2
Contrast Ratio1100 : 1
Video Input2 x 12G/3G/HD/SD-SDI
2 x HDMI
Video Loopout2 x 12G/3G/HD/SD-SDI
2 x HDMI
Input FormatsSDI:
SD: 480i 59.94 / 576i 50
HD: 720p 25/29/30/50/59.94/60
1080i 50/59.94/60
1080p 23.98/23.98sf/24/24sf/25/29.97/30
3G Level A:
1080p50/59.94/60/23.98/23.98sf/24/24sf/25/25sf/29/29.97sf/30/30sf
1080i 50/59.94/60
12G:
3840/2160p 23.98/24/25/29.97/30/50/59.94/60
4096x2160p 23.98/24/25/29/30/50/59.94/60
HDMI:
480i 59.94/480p 59.94/576i 50/576p 50
720p 25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
3840x2160p 23.98/24/25/29.97/30/50/59.94/60
4096x2160p 23.98/24/25/29.97/30/50/59.94/60
640x480 60
800x600 60
1024x768 60
1280x768 60
1360x768 60
1280x960 60
1280x1024 60
1400x1050 60
1600x1200 60
1920x1200 60
Audio In-Embedded Audio from SDI and HDMI
Audio Output- SDI and HDMI embedded audio from 3.5mm headphone jack
-Embedded audio from SDI and HDMI loopout
Control-On-screen tally from 15-pin D-Sub port
-GUI control via Ethernet
Power SupplyDC 10.8~24V (Typical 12V), 21W (Typical)
Storage Temperature(-20)°C ~ (+ 60°)C
Operating Temperature(0)°C ~ (+ 50°)C
Dimensions481.8mm x 133.5mm x 61.4mm (19”W x 5.26”H x 2.42”D)
Weight2.56kg (5.64 lbs)
FeaturesColor space, camera log (default log and user log), Gamma adjust,
HDR, safety marker, aspect marker, center marker, marker color, scan
modes, aspect ratio, H/V delay, check field, image freeze, Image flip,
waveform, vectorscope, peaking color, peaking level, false color,
exposure level, histogram, time code, audio meter, 4 user defined
function buttons
