Clearance

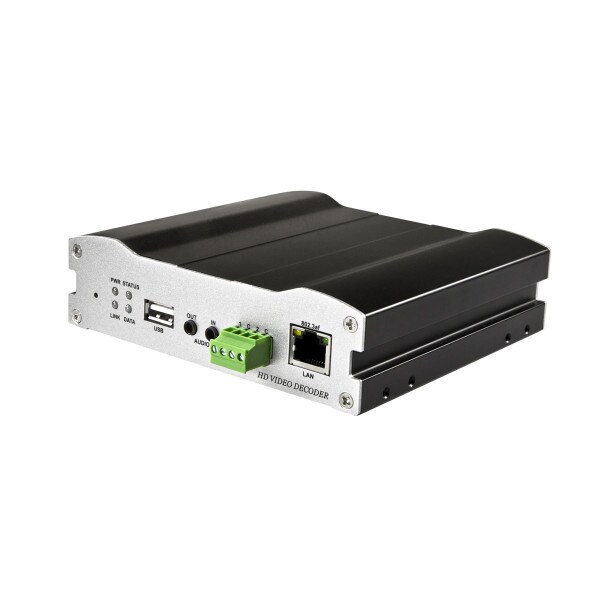

VS-104D-3GSDI-B

1080p60 Full HD Decoder (B-Stock)

UPC # 801813189414

$682.50

Qty	Price

B STOCK

VS-104D-3GSDI can decode and display A/V up to 1080p60 on a monitor. Also, users can control pan, tilt and zoom for an IP Camera that is connected to the VS-104D-3GSDI via Onvif using a keyboard controller

Certified B-Stock and Demo Products
All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

VS-104D-3GSDI Specifications
System	System Mode	Decoder
Video	Compression	H.264, MJPEG
	Framerate	Max 60fps @ 1920x1080
	Bitrate	Primary: 32Kbps ~ 16Mbps

	Resolution	352x240 ~ 1920x1080
	Streaming	H.264/MJPEG
	Burn-in OSD	Multi-lingual
	Output	1 x CVBS (BNC) 1 x HDMI (Type A) 1 x HDSDI/3GSDI (BNC)
Network	Interface	Ethernet 10/100/1000base-T (RJ-45)
	Protocol	IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP,RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Confi guration, NTP,
	Security	Password protection, IP address filtering, HTTPS encryption
	Application Programming Interface	MEI Protocol/SDK, ONVIF, PSIA, MPEG-TS
Audio
	Compression	G.711 / AAC
	Sample rate	G.711: 8KHz, AAC: 32/44.1/48KHz
	Bitrate	G.711: 64Kbps, AAC: 64Kbps/128Kbps
	Streaming	Full duplex
	Input	1 x Line-In (Stereo, 3.5mm)
	Output	1x Line-Out (Stereo, 3.5mm) + Embedded
Event and Alarm	Event sources	Motion, Sensor input, video loss, Client disconnection
Event and Alarm	Event actions	Notification (E-mail), FTP, PTZ preset, Alarm control, Recording
General
	Housing	Aluminum
	Certifications	CE, FCC, KC, ROHS
	External devices	2 x Sensor-In (dry contact, NO/NC) 2 x Alarm-Out (dry contact, NO)
	Edge storage	1 x USB 2.0 port
	Power Supply	Min DC12V/TBD, PoE (Power over Ethernet): 802.3af
	Power Consumption	DC12V/PoE: Max 7.2W
	Operating Temp.	-10°C ~ 50°C (14°F ~ 122°F) / 20% ~ 80% RH
	Dimension	134.08(W) X 125.5(D) X 36.87(H)mm
	Weight	480g
