Clearance

CV420-30X-IP-DEMO

4K60 30x IP (HEVC) & HDMI

UPC # 801813226973

$1,080.00

Qty	Price

DEMO STOCK

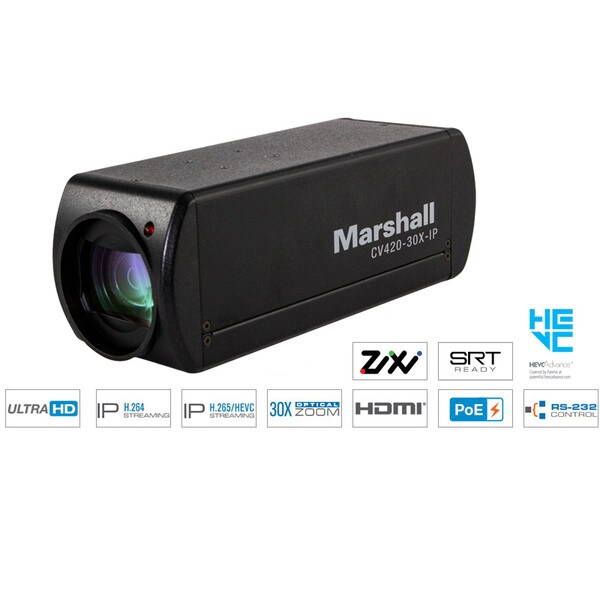

The CV420-30X-IP 30X optical zoom IP (HEVC/SRT) camera utilizes a professional grade 8.5-megapixel sensor to capture crisp UHD video up to 3840x2160p at 60fps with support for all HD formats.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

CV420-30X-IP Specifications
Housing Color	Black
Lens	30x optical zoom
Angle of view (H)	68~3.5°
Minimum working distance	1.5m (Tele/Wide)
Interface
Power	Connector: EIAJ-04 12 V (10.8 to 13.0 V DC)
HD Output	HDMI 2.0/Ethernet
Control	RS-232/Ethernet
OSD	English/Chinese
Ouput resolution	3840x2160/59.94p 3840x2160/50p 3840x2160/29.97p 3840x2160/25p 1080p/59.94 1080p/50 1080p/29.97 1080p/25 1080i/59.94 (SDI & HDMI only) 1080i/50 (SDI & HDMI only) 720p/59.94 720p/50 720p/29.97 720p/25
Video Compression Format	H.265/H.264
Stream	H.265 4K 60fps H.264 1080p 60fps H.264 640x360 30fps
Audio in	x1
Audio Out	x1
Audio Compression Format	AAC/G.711
Preset groups	256
Function
Electronic shutter	1/1 to 1/10,000 s
Flip / Mirror	Yes
White balance	Auto / Manual
Gain	Auto / Manual
AE control	Auto / Manual
Brightness control	Yes
Backlight compensation	Yes
Flicker cancel	Sync with output mode
Focusing system	Auto, One-push AF, Manual
Noise Reduction	Yes
Protocols	VISCA, PELCO D, VISCAIP, ONVIF
Storage temperature	–20°C to +60°C (-4°F to 140°F)
Operating temperature	0°C to 40°C (32°F to 104°F)
Power consumption	PoE: 10W DC In: 9W
Form Factor
Color	Black
Dimension(WxHxD)	67x67x188.4 mm
Weight	1kg
