C-IN5311-DEMO

1/3" Color Microscope Zoom Camera Demo
UPC # 801813226805
$250.00
Quantity discounts available
QtyPrice

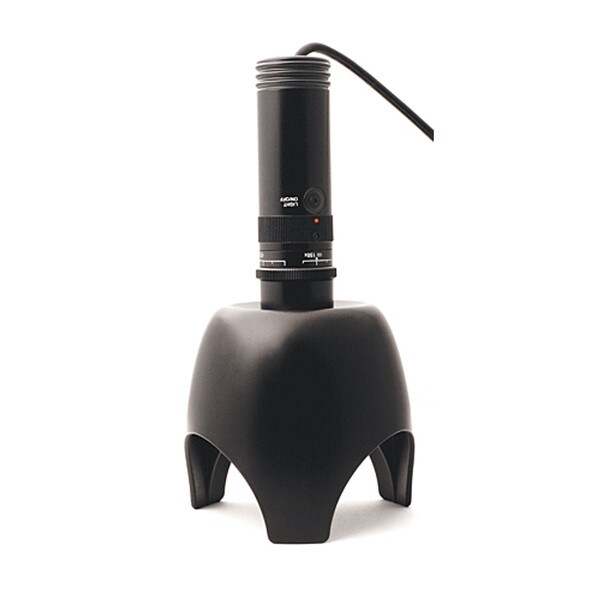

The Marshall Microscope Zoom Camera uses cutting-edge display technology for outstanding magnification and color resolution. Simply plug the camera into your monitor's video input, adjust the focus, and you'll be amazed by the detail and clarity of even the smallest objects.
More Info
This is a must-have tool for industrial inspection of PC boards and metal surfaces, as well as an essential instrument for scientists and educators who want detailed views of specimens. The Marshall Microscope Zoom Camera can also be used in healthcare and beauty fields for up-close inspection of skin, hair, and nails and offers hobbyists/collectors critical assessment of coins, stamps, precious gems and more.
SPECIFICATIONS
Image sensor1/3” Sony Color CCD
Effective pixel elementsNTSC: 768(H) x 498(V) / PAL: 752 (H) x 582 (V)
Scanning system NTSC: 525 lines, 60 field/sec / PAL 625 lines, 50 Field/sec
Resolution470 TV lines
Illumination0.5 Lux
Lens35X ~ 150X
Video outputComposite, 1.0 p-p, 75Ω
Power consumptionDC 12V/200mA
Dimension226mm x 56mm (with stand)
Power consumptionDC 12V/200mA
WeightApprox: 195g, 450g with stand
