Clearance

CV374-DEMO

Compact 4K (UHD) Camera NDI HX3 & HDMI

UPC # 801813234916

$695.20

Qty	Price

DEMO STOCK

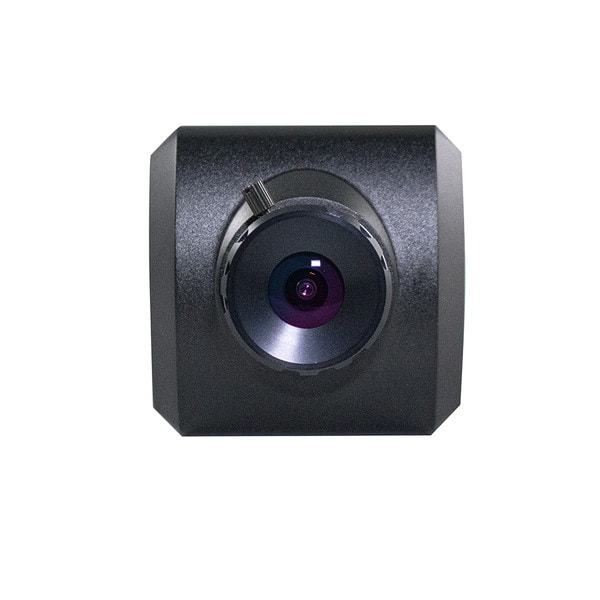

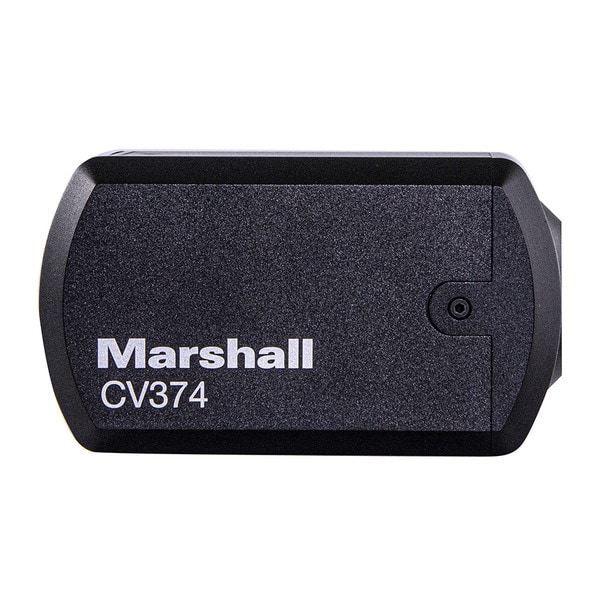

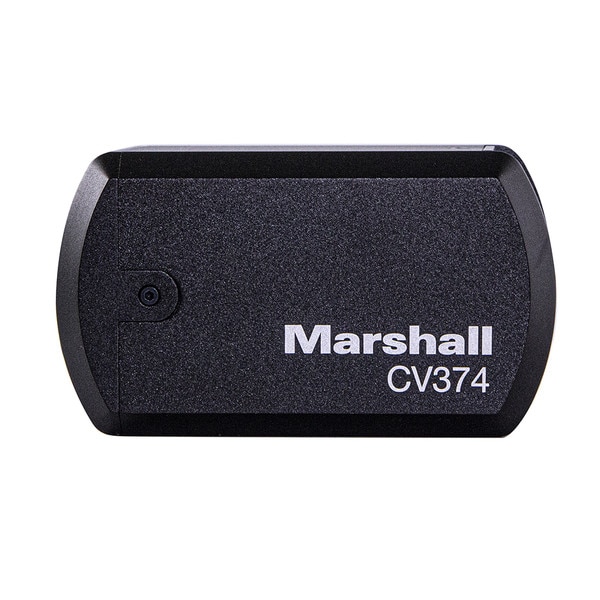

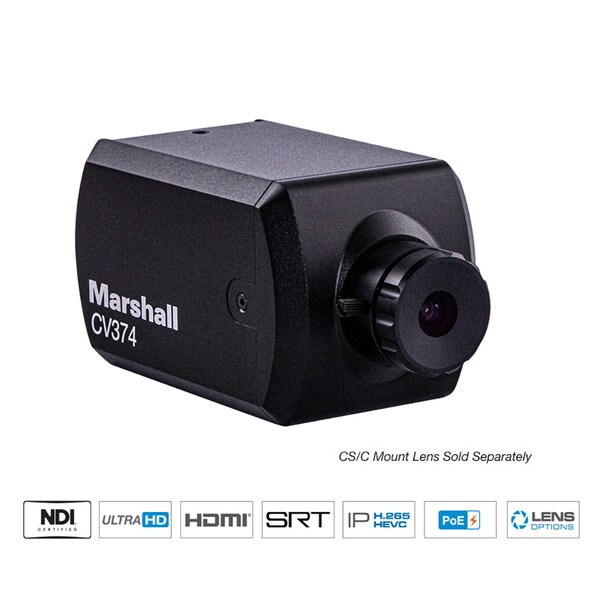

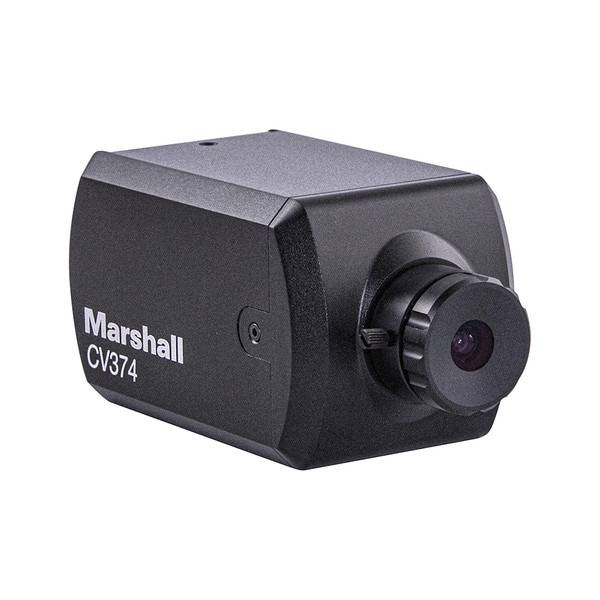

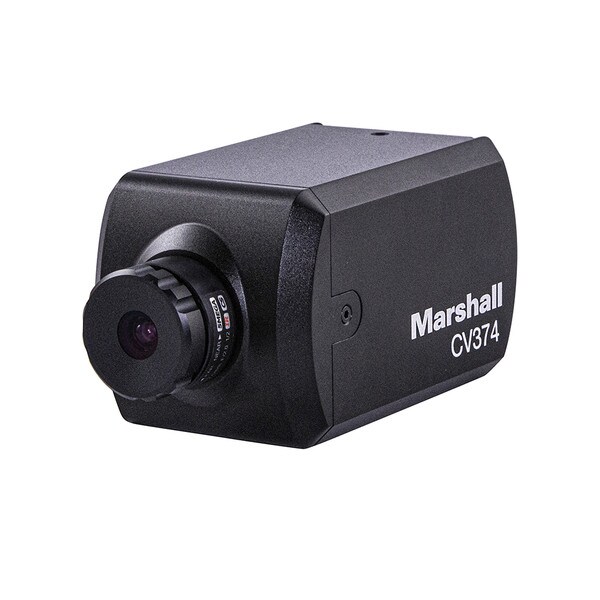

The Marshall CV374 network streaming POV camera is built around a Sony UHD sensor with over 8.46 million pixels. The compact CV374 delivers exceptional 4K (UHD) video performance via HDMI and ethernet IP interface supporting the ultra-efficient NDI HX3, SRT, HEVC codecs from a durable aluminum alloy build with rear I/O protection wings. The Ultra-HD Sony sensor offers crystal clear and rich color accurate video with improved low light sensitivity, refined remote adjust capability and flexible interchangeable lenses.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

CV374 Specifications
Sensor	Image Sensor	1/2.8” Progressive CMOS (Approx. 8.46 mega)
	Scanning System	16:9 Progressive
	Sync. System	Internal
	Effective Pixel	3840(H) x 2160(V)
	Min. Illumination	0.5Lux (Day), 0.01Lux (Night)
Optics	Lens	CS Mount Compatible
Functions	Back Light Compensation	WDR, BLC
	Exposure	Auto / Manual
	White Balance	AUTO / Manual / Indoor / Outdoor / One Push / AUTO Tracking(ATW)
	Day & Night System	Day / Night:TDN(ICR)
	Electronic Shutter	1/30~1/10000
	Functions	Image Mirror/Flip, 2D+3DNR, Anti Flicker
Ethernet	IP Protocols	NDI\|HX2, NDI\|HX3, SRT, RTMP, RTSP
Ethernet	Video encode format	H.264 / H.265 (Note: RTMP supports only H.264)
Video Output	Interfaces	HDMI, Ethernet
Output resolutions	HDMI	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p25/29.97/30/50/59.94/60
	IP	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60
	NDI\|HX2	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60
	NDI\|HX3	1080p50/60
Audio Input	Line level	16kHz, 32kHz, 48kHz sample rates
Control	Network	Web GUI / VISCA over IP
General	Operation Temperature	0℃ ~ 50℃
	Power Input	12VDC (10V to 13.5VDC)
	Power consumption	12VDC power: 5.625W, POE power: 6.7W
	Dimensions	99.08mm(L) x 56mm(W) x 56mm(H) (without lens)
	Weight	0.8 lbs (without lens)
