Clearance

CV420-30X-NDI-DEMO

4K60 30x NDI® & HDMI

UPC # 801813229561

$1,359.20

Qty	Price

DEMO STOCK

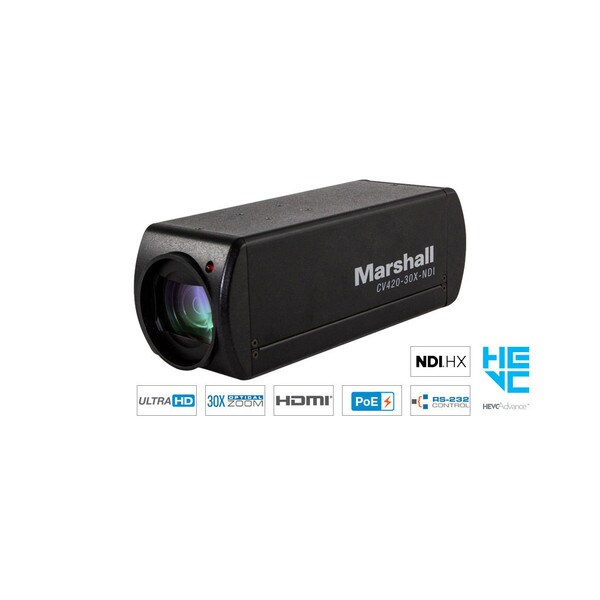

The CV420-30X-NDI 30X optical zoom NDI® camera utilizes a professional grade 8.5-megapixel sensor to capture crisp HD video up to 3840x2160p at 60fps with support for all HD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

CV420-30X-NDI Specifications
Housing Color	Black
Sensor	1/2.5" 8MP CMOS
Lens	30x optical zoom
Angle of view (H)	68~3.5°
Minimum working distance	1.5m (Tele/Wide)
Interface
Power	1. Connector: EIAJ-04 12 V (10.8 to 13.0 V DC) 2. POE (802.3af)
HD Output	HDMI/Ethernet
Control	RS-232/Ethernet
OSD	English/Chinese
Ouput resolution	2160p/59.94 2160p/50 2160p/29.97 2160p/25 1080p/59.94 1080p/50 1080p/29.97 1080p/25 720p/59.94 720p/50 1080i59.94 (HDMI and SDI only) 1080i50 (HDMI and SDI only)
Video Compression Format	HEVC/H.264
Stream	Two streaming structure HEVC 4K60fps + H.264 640x360 30fps
Audio in	x1
Audio Out	x1
Audio Compression Format	AAC
Reset Button	x1
Preset groups	256
Function
Electronic shutter	1/1 to 1/10,000 s
Flip / Mirror	Yes
White balance	Auto / Manual
Gain	Auto / Manual
AE control	Auto / Manual
Brightness control	Yes
Backlight compensation	Yes
Flicker cancel	Sync with output mode
Focusing system	Auto, One-push AF, Manual
Noise Reduction	Yes
Protocols	VISCA, PELCO D, VISCAIP
Ethernet Protocols	DHCP DNS HTTP HTTPS IPv4 UDP NDI
Storage temperature	–20°C to +60°C (-4°F to 140°F)
Storage Humidity	90%, non-condensing
Operating temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	20~80%, non-condensing
Power consumption	<10W
Form Factor
Color	Black
Dimension(WxHxD)	67x67x189 mm
Weight	1kg
