Clearance

CV420-18X-DEMO

18X Zoom True-4K60 12GSDI Camera

UPC # 801813228267

$1,199.99

Qty	Price

DEMO STOCK

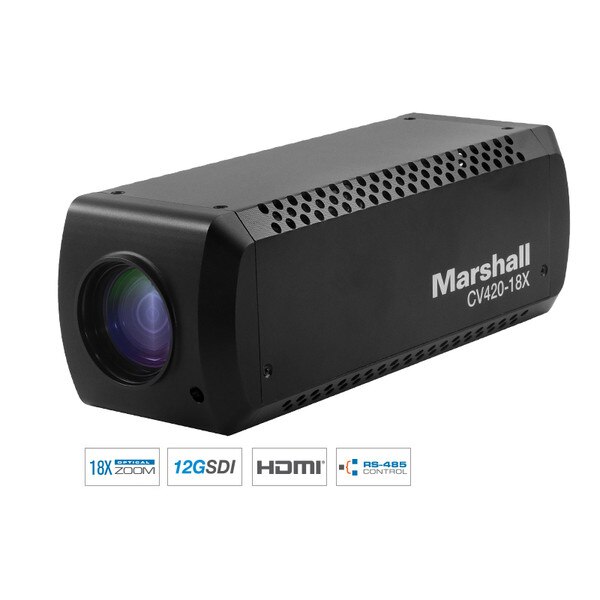

Marshall CV420-18X features 18x optical (3x digital) zoom block and flexible 12GSDI/HDMI simultaneous outputs with crystal clear 4K images up to 4096x2160p at 60fps.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

CV420-18X Specifications
Imaging Sensor	Image Sensor	1/1.7” Progressive (Approx. 12.4 Megapixel)
	Effective Pixel	4096(H) x 2160(V)
	Pixel Size	1.85(μm) x 1.85(μm)
	Min. Illumination	Day: Full Auto (0.8Lux), AE Manual Iris Open (0.4Lux) Night: Full Auto (0.04Lux), AE Manual Iris Open (0.02Lux)
Optics	Lens	18x Optical Zoom, f=6.8~120 mm, F1.61 ~ F4.13
	Zoom	18x optical zoom + 3x digital zoom = 54x
	Angle of View (H)	55 degrees (wide end) to 3.4 degrees (tele end)
	Minimum Working Distance	150 mm (wide open), 1500 mm (tele end)
Functions	Focus	Auto/ Manual
	Exposure	Auto / Shutter Priority/ Iris Priority/ AGC Priority/ Manual/ Bright
	White Balance	AWB (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual
	Light Modes	DAY (color), NIGHT (b/w), AUTO switch
	Electronic Shutter	NTSC: 1/60~1/10000, PAL: 1/50~1/10000, SENS UP : OFF~X15
	Adjustable Features	Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct
Video Outputs	HDMI	4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1920 x 1080i: 60, 59.94, 50 1280 x 720p: 60, 59.94, 50
Video Outputs	12G/6G/3G/HD-SDI	4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1920 x 1080i: 60, 59.94, 50 1280 x 720p: 60, 59.94, 50
Audio	Input	3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line)
Audio	Sample Rate	16/24/32 Bits
Control Interface	RS485	SONY-VISCA protocols, PELCO-P/D
General	Operation Temperature	-10°C ~ 50°C
	Power Input	12VDC (7V to 15VDC)
	Power consumption	Max 25.2W
	Mass	1.95 lbs (camera only), 2.18 lbs (with breakout cable)
	Dimensions	232 (D) x 86 (W) x 80 (H) mm
