Clearance

C-V420Ne-DEMO

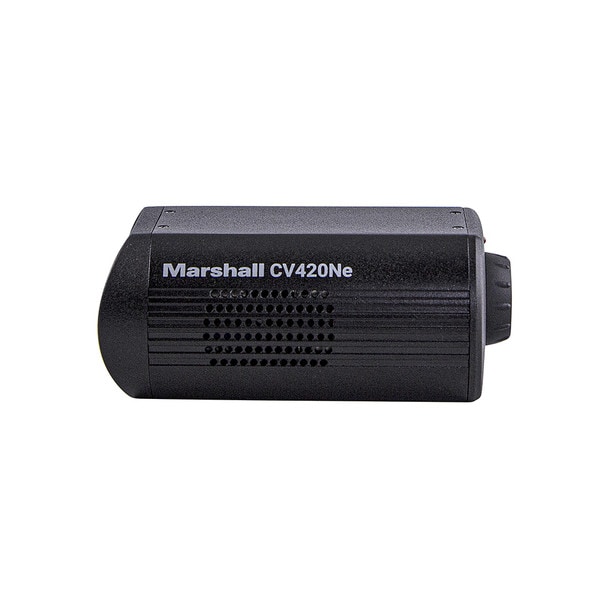

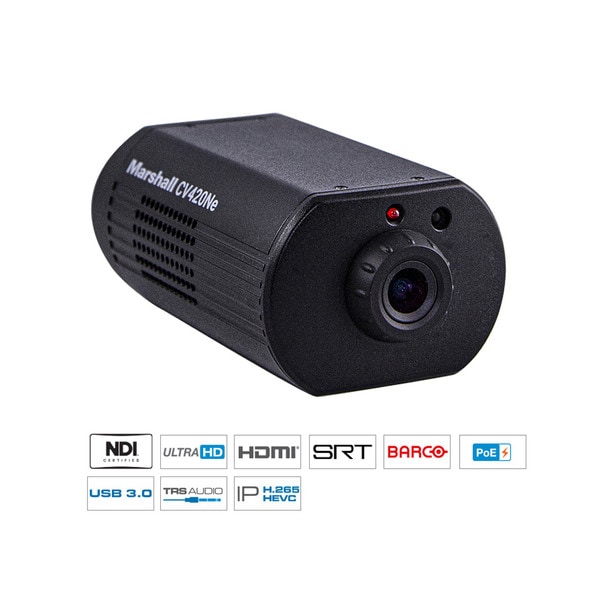

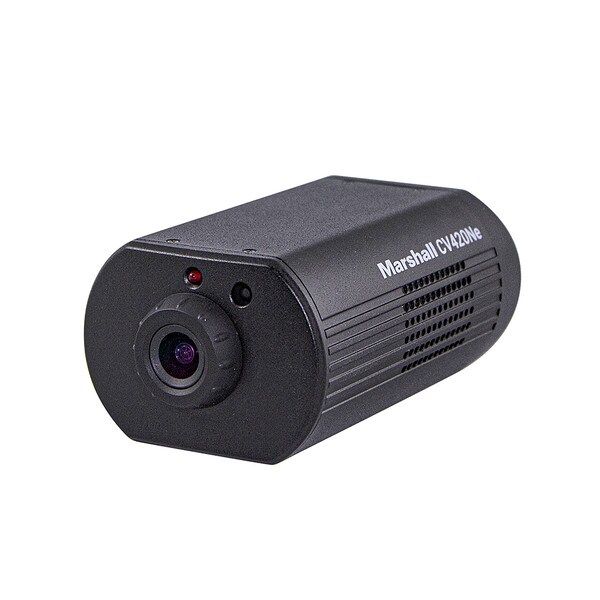

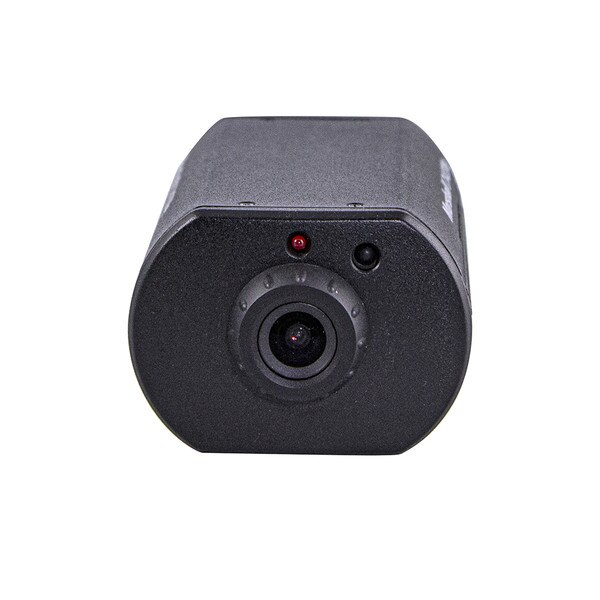

Compact 4K60 Stream Camera (NDI|HX3, HDMI & USB)

UPC # 801813234909

$782.40

Qty	Price

DEMO STOCK

Compact and durable streaming camera with a large 9.2 megapixel 1/1.8" sensor size and ultra-wide 100 degree angle-of-view lens with zero curvature. CV420Ne comes with a CVM-5 monitor mount, however, can be installed on any 1/4"-20 camera mount including tripods, fixed mounts, and many others.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

CV420Ne Specifications
Sensor	Sony IMX334LQR-C 1/1.8" 9.17 MP CMOS
Video Format	Resultion : 4K/1080p/720p Frame Rate : 59.94/50/29.97/25

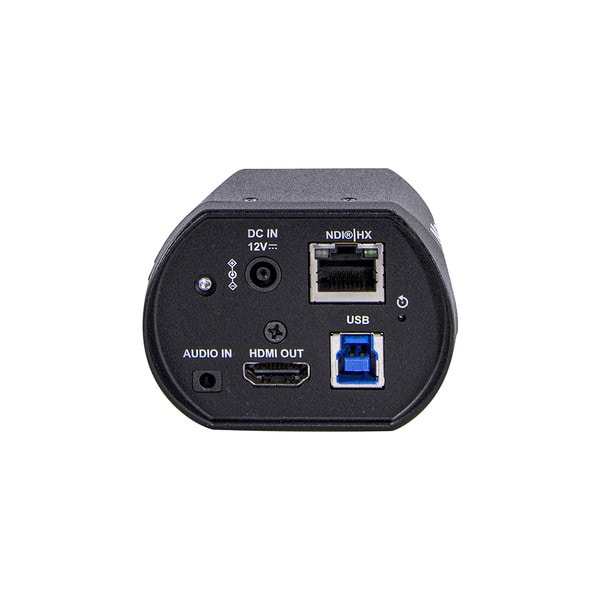

Video Output (HD) Interface	HDMI 2.0, Ethernet, USB 3.0(USB 2.0 compatible)
Optical Zoom	No
Horizontal Viewing Angle	102°(Horizontal) typical
Aperture	F1.6
Focal Length	4.57mm typical
Shutter Speed	1 ~ 1/10,000 sec
Minimum Object Distance	30 cm typical
Focus System	Manual
Gain Control	Auto, manual
White Balance	Auto, manual
Exposure Control	Auto, manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	256
Control Interface	Ethernet / USB
Control Protocol	VISCA over IP/ ONVIF/ UVC / NDI
Tally Light	Yes
IP Protocol	NDI\|HX3 / NDI\|HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT
IP Streaming Output	NDI : HEVC 4K59.94fps H.264 640x360 29.97fps or RTSP : HEVC 4K 59.94fps H.264 1080p 59.94fps H.264 640x360 29.97fps
PoE	PoE (IEEE802.3af)
Video Compression	HEVC / H.264 / MJPEG
Audio Input	Line In/Mic In, Phone Jack 3.5mm x1
Audio Output	HDMI 2.0, Ethernet, USB 3.0
IR Receiver	Yes
IR Remote Control	Yes
Power Consumption	DC : ≦11W ，PoE : ≦12W
Weight	350g typical
Dimensions	113 x 70 x 51 mm typical
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 60°C
