Clearance

CV420e-DEMO

Compact 4K60 Stream Camera with IP, HDMI & USB

UPC # 801813232769

$600.00

Qty	Price

DEMO STOCK

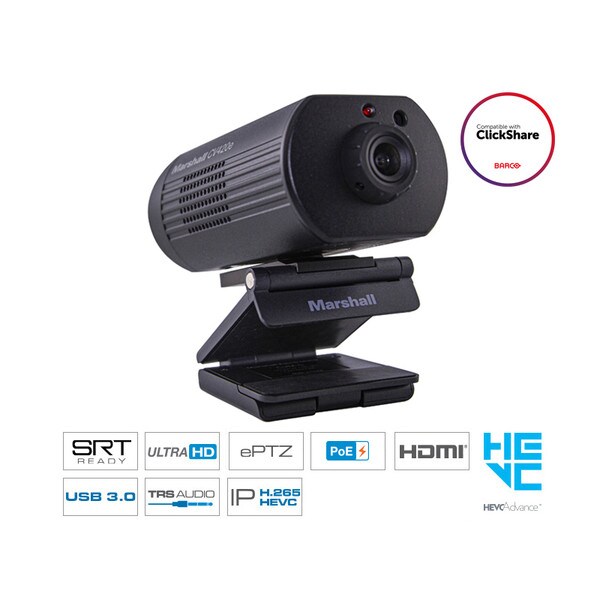

Compact and durable streaming camera with a large 9.2 megapixel 1/1.8" sensor size and ultra-wide 100 degree angle-of-view lens with zero curvature.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

CV420e Specifications
Sensor	Sony IMX334LQR-C 1/1.8" 9.17 MP CMOS
Video Format	Resultion : 4K/1080p/720p Frame Rate : 59.94/50/29.97/25
Video Output (HD) Interface	HDMI 2.0, Ethernet, USB 3.0(USB 2.0 compatible)
Optical Zoom	No
Horizontal Viewing Angle	102°(Horizontal) typical
Aperture	F1.6
Focal Length	4.57mm typical
Shutter Speed	1 ~ 1/10,000 sec
Minimum Object Distance	30 cm typical
Focus System	Manual
Gain Control	Auto, manual
White Balance	Auto, manual
Exposure Control	Auto, manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	256
Control Interface	Ethernet / USB
Control Protocol	VISCA over IP/ ONVIF/ UVC
Tally Light	Yes
PoE	PoE (IEEE802.3af)
Video Stream	RTSP / RTMP / RTMPS / MPEG-TS / SRT
Video Compression	HEVC / H.264 / MJPEG
Audio Input	Line In/Mic In, Phone Jack 3.5mm x1
Audio Output	HDMI 2.0, Ethernet, USB 3.0
IR Receiver	Yes
IR Remote Control	Yes
Power Consumption	DC : ≦11W ，PoE : ≦12W
Weight	350g typical
Dimensions	113 x 70 x 51 mm typical
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 60°C
