Best Seller

CV504

Micro POV Camera (3GSDI)
UPC # 801813230918
$399.99

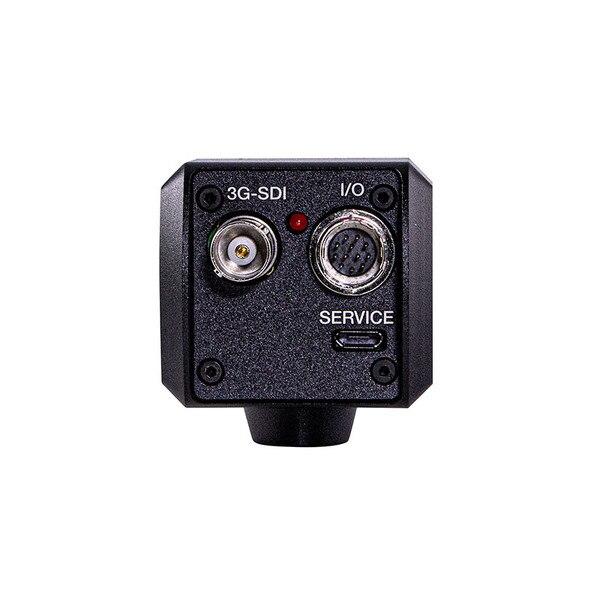

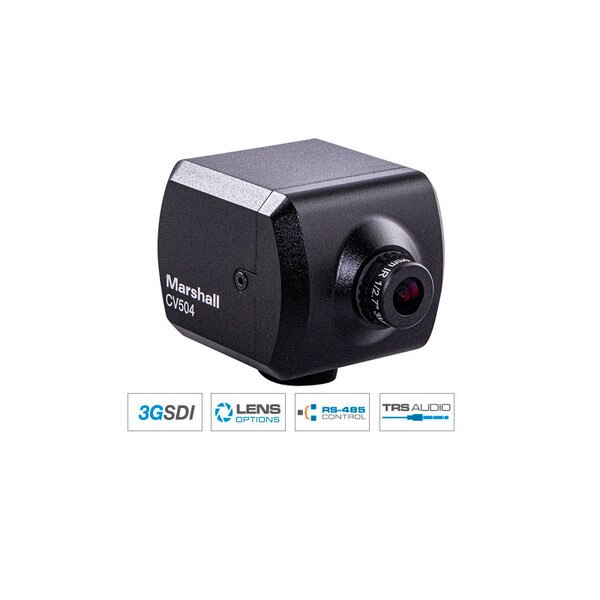

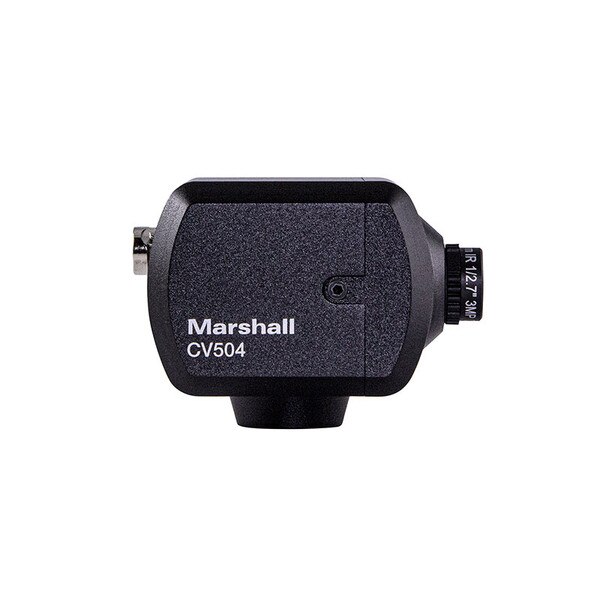

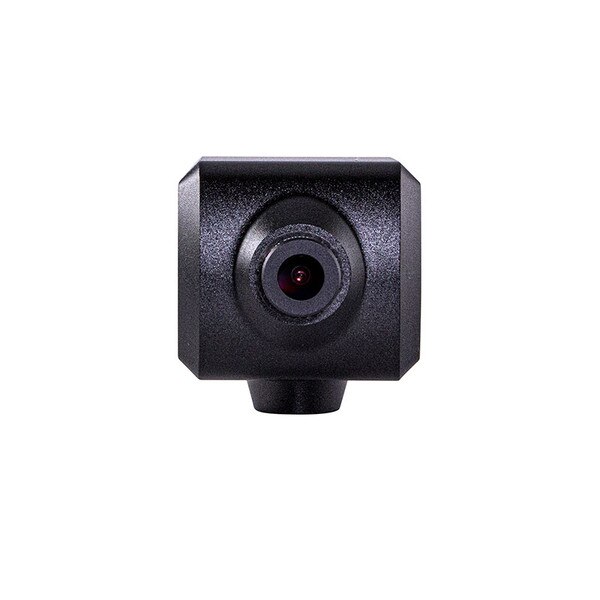

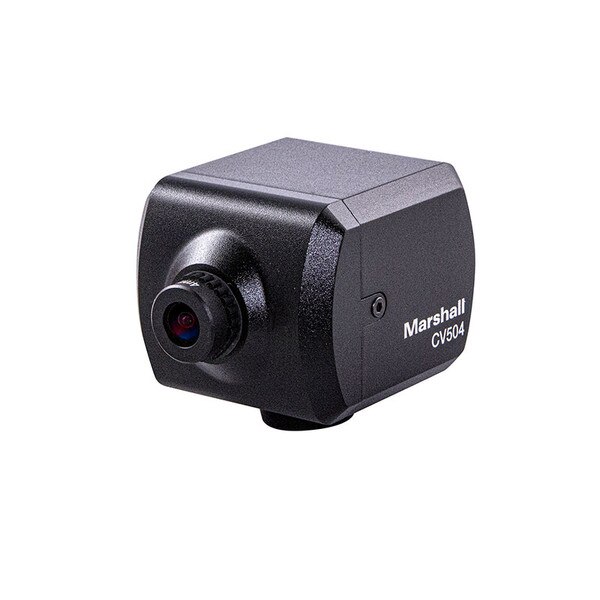

The Marshall CV504 POV camera is built around a next generation Sony sensor with over 2 million pixels and larger pixels. The micro CV504 delivers exceptional 10 bit 4:2:2 video performance (BT.709) from a durable aluminum alloy body through 3GSDI (BNC) output and flexible interchangeable lenses. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability.


  • 2.2 Megapixel Sony sensor with square pixel array
  • Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV
  • 3GSDI (BNC) 10bit, 4:2:2, BT.709 with remote adjust & match
  • 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
  • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
  • Micro-USB port for field upgradeable firmware via PC
  • Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
  • Weight: 0.3lbs (0.136kg); approx dims: 40mm x 44mm x 55mm
  • Power: 12V+/-10% drawing 2.64W (max 6W)


Compatible HD Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV-4702.3-3MP2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
CV-4702.8-3MP-IR2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4804.4-12MP 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8")
CV-4706-3MP-IR6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°


Compatible 8MP Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV4804-8MP4.0mm F1.8 8MP M12 Lens - 90° (1/2.5"), 85° (1/2.7"), 80° (1/3")
CV4808-8MP8.0mm F1.8 8MP M12 Lens - 70° (1/2.5"), 62° (1/2.7"), 50° (1/3")
CV4812-8MP12.0mm F1.8 8MP M12 Lens - 50° (1/2.5"), 42° (1/2.7"), 33° (1/3")


Compatible 5MP Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
V-555.0-5MP-VIS-IR M125.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
V-557.6-5MP-VIS-IR M127.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")


Compatible HD Varifocal Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV-2812-3MP2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 32° ~ 100° (1/2.7")
CV-0622-5MP6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°

Actual viewing angle may vary depends on image sensor specs and camera design.
