CV504-M

Micro POV Camera (3GSDI) - Open box/ repackage

UPC # 801813235050

$381.59

Qty	Price

Open Box/ Repackage

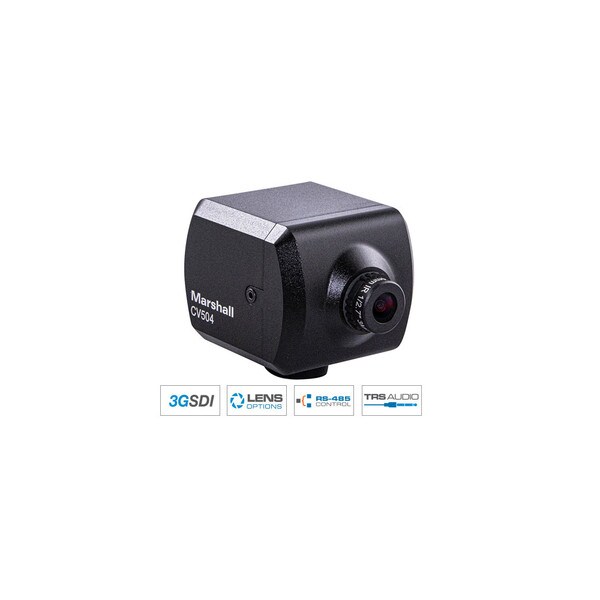

The Marshall CV504 POV camera is built around a next generation Sony sensor with over 2 million pixels and larger pixels. The micro CV504 delivers exceptional 10 bit 4:2:2 video performance (BT.709) from a durable aluminum alloy body through 3GSDI (BNC) output and flexible interchangeable lenses. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability.

All Open Box/Repackage products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, re-installation, and other associated damages.

Qty

Request Info

2.2 Megapixel Sony sensor with square pixel array
Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV
3GSDI (BNC) 10bit, 4:2:2, BT.709 with remote adjust & match
1920x1080p, 1920x1080i & 1280x720p resolutions selectable
Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
Micro-USB port for field upgradeable firmware via PC
Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
Weight: 0.3lbs (0.136kg); approx dims: 40mm x 44mm x 55mm
Power: 12V+/-10% drawing 2.64W (max 6W)

Compatible HD Prime Lens Options (M12):

Part Number	Description & Horizontal AOV
CV-4702.3-3MP	2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
CV-4702.8-3MP-IR	2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4804.4-12MP	4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8")
CV-4706-3MP-IR	6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP	8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP	12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP	16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°

Compatible 8MP Prime Lens Options (M12):

Part Number	Description & Horizontal AOV
CV4804-8MP	4.0mm F1.8 8MP M12 Lens - 90° (1/2.5"), 85° (1/2.7"), 80° (1/3")
CV4808-8MP	8.0mm F1.8 8MP M12 Lens - 70° (1/2.5"), 62° (1/2.7"), 50° (1/3")
CV4812-8MP	12.0mm F1.8 8MP M12 Lens - 50° (1/2.5"), 42° (1/2.7"), 33° (1/3")

Compatible 5MP Prime Lens Options (M12):

Part Number	Description & Horizontal AOV
V-555.0-5MP-VIS-IR M12	5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
V-557.6-5MP-VIS-IR M12	7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")

Compatible HD Varifocal Lens Options (M12):

Part Number	Description & Horizontal AOV
CV-2812-3MP	2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 32° ~ 100° (1/2.7")
CV-0622-5MP	6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°

Actual viewing angle may vary depends on image sensor specs and camera design.
