CV508

Micro POV Camera HDMI + 3GSDI
UPC # 801813230956
$499.99

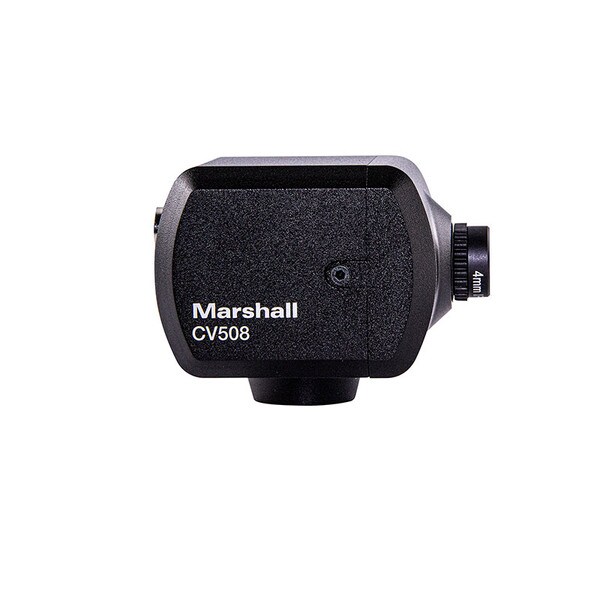

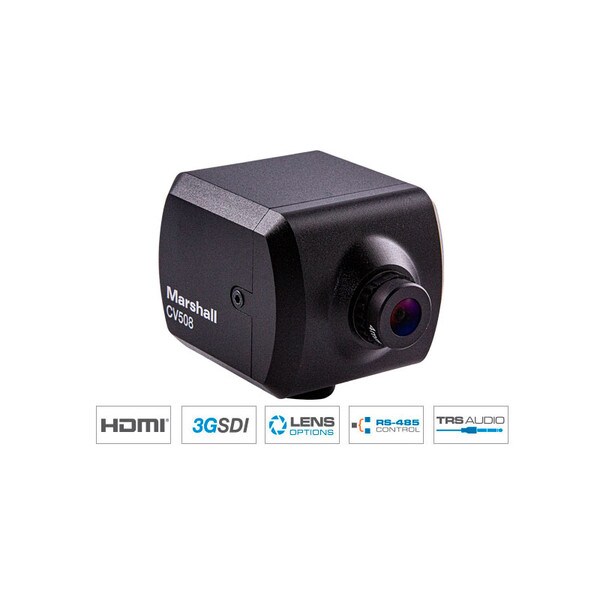

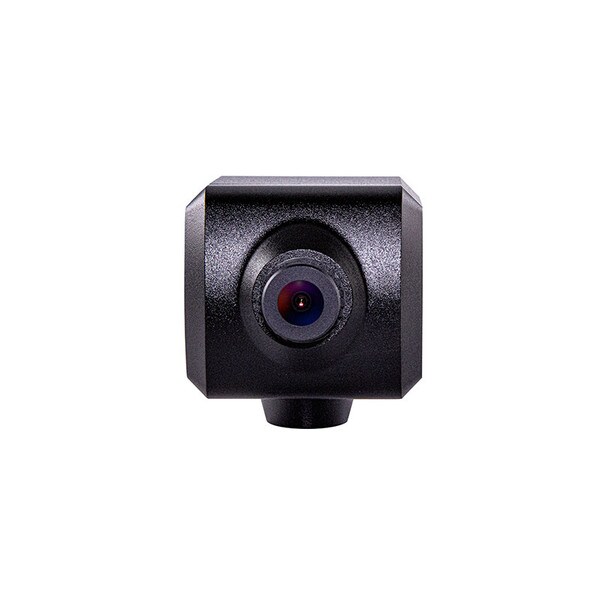

The Marshall CV508 camera is a broadcast quality POV camera delivering exceptional 10-bit HD 4:2:2 video performance (BT.709) from a durable and discreet aluminum alloy body with flexible interchangeable lenses. The new Sony sensor offers rich color accurate video with enhanced low-light sensitivity and refined remote adjust and match features making it the most powerful POV camera on the market.

Available for OEM Applications, contact us for inquiries by clicking on the “Request Info Button”

  • 2.2 Megapixel Sony sensor with square pixel array and larger pixels
  • Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV

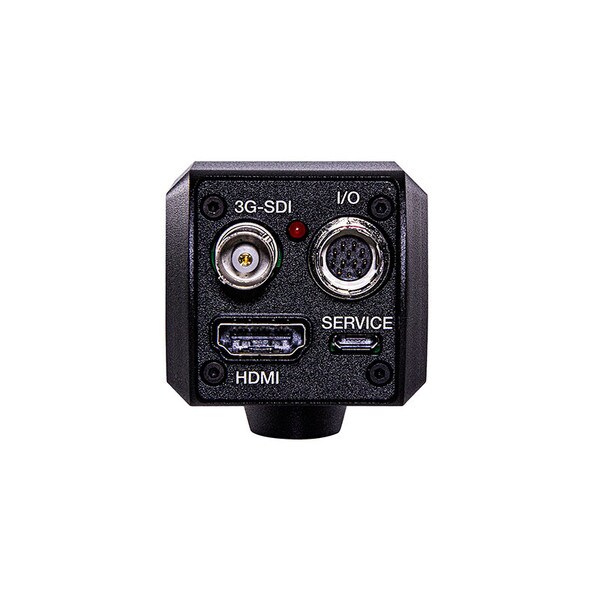

  • HDMI & 3GSDI (10bit, 4:2:2, BT.709) with remote adjust & match
  • 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
  • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
  • Micro-USB port for field upgradeable firmware via PC
  • Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
  • Weight: 0.3lbs (0.136kg); approx dims: 40mm x 44mm x 55mm
  • Power: 12V+/-10% drawing 2.76W (max 6W)


Compatible HD Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV-4702.3-3MP2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
CV-4702.8-3MP-IR2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4804.4-12MP 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8")
CV-4706-3MP-IR6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°


Compatible 8MP Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV4804-8MP4.0mm F1.8 8MP M12 Lens - 90° (1/2.5"), 85° (1/2.7"), 80° (1/3")
CV4808-8MP8.0mm F1.8 8MP M12 Lens - 70° (1/2.5"), 62° (1/2.7"), 50° (1/3")
CV4812-8MP12.0mm F1.8 8MP M12 Lens - 50° (1/2.5"), 42° (1/2.7"), 33° (1/3")


Compatible 5MP Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
V-555.0-5MP-VIS-IR M125.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
V-557.6-5MP-VIS-IR M127.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")


Compatible HD Varifocal Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV-2812-3MP2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 32° ~ 100° (1/2.7")
CV-0622-5MP6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°

Actual viewing angle may vary depends on image sensor specs and camera design.
