CV508-M

Micro POV Camera HDMI + 3GSDI - Open Box/ Repackage
UPC # 801813235067
$449.99
Quantity discounts available
QtyPrice

Open Box/ Repackage

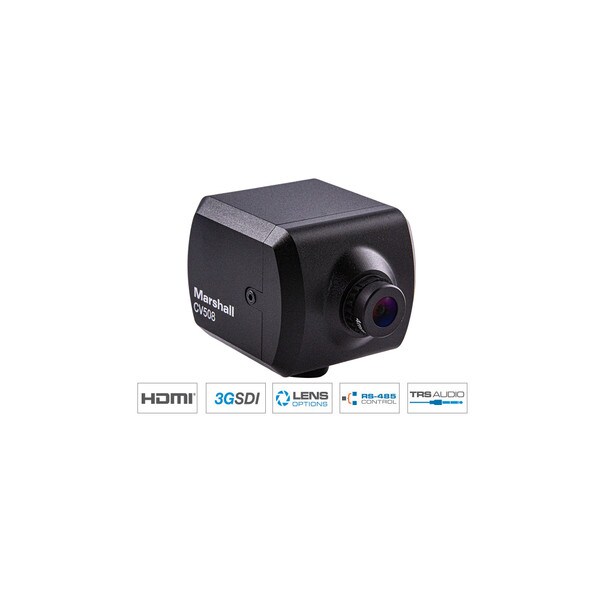

The Marshall CV508 camera is a broadcast quality POV camera delivering exceptional 10-bit HD 4:2:2 video performance (BT.709) from a durable and discreet aluminum alloy body with flexible interchangeable lenses. The new Sony sensor offers rich color accurate video with enhanced low-light sensitivity and refined remote adjust and match features making it the most powerful POV camera on the market.

All Open Box/Repackage products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, re-installation, and other associated damages.

  • 2.2 Megapixel Sony sensor with square pixel array and larger pixels
  • Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV
  • HDMI & 3GSDI (10bit, 4:2:2, BT.709) with remote adjust & match
  • 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
  • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
  • Micro-USB port for field upgradeable firmware via PC
  • Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
  • Weight: 0.3lbs (0.136kg); approx dims: 40mm x 44mm x 55mm
  • Power: 12V+/-10% drawing 2.76W (max 6W)


Compatible HD Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV-4702.3-3MP2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
CV-4702.8-3MP-IR2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4804.4-12MP 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8")
CV-4706-3MP-IR6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°


Compatible 8MP Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV4804-8MP4.0mm F1.8 8MP M12 Lens - 90° (1/2.5"), 85° (1/2.7"), 80° (1/3")
CV4808-8MP8.0mm F1.8 8MP M12 Lens - 70° (1/2.5"), 62° (1/2.7"), 50° (1/3")
CV4812-8MP12.0mm F1.8 8MP M12 Lens - 50° (1/2.5"), 42° (1/2.7"), 33° (1/3")


Compatible 5MP Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
V-555.0-5MP-VIS-IR M125.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
V-557.6-5MP-VIS-IR M127.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")


Compatible HD Varifocal Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV-2812-3MP2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 32° ~ 100° (1/2.7")
CV-0622-5MP6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°

Actual viewing angle may vary depends on image sensor specs and camera design.
