CV566

Micro Genlock Camera with 3GSDI/HDMI
UPC # 801813228649
$353.40 $467.37

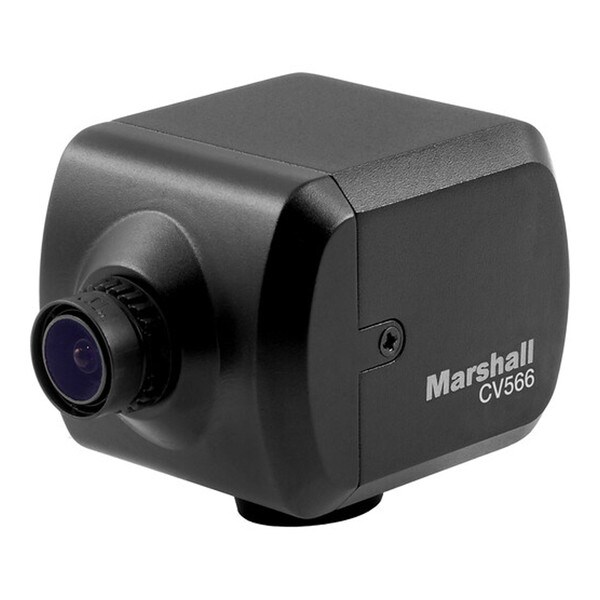

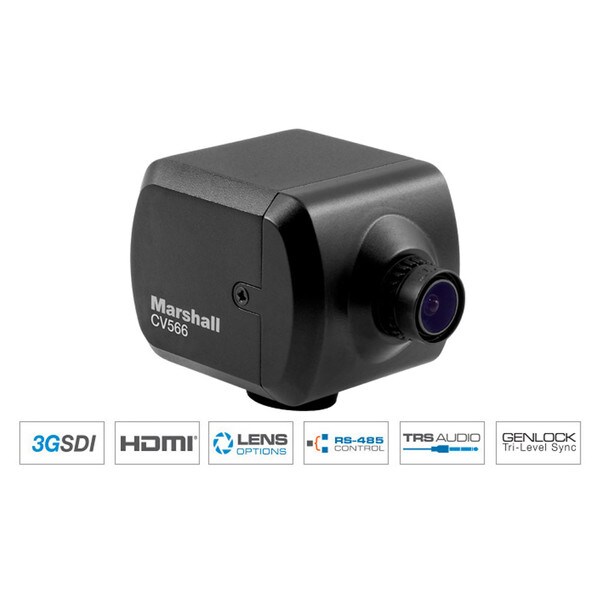

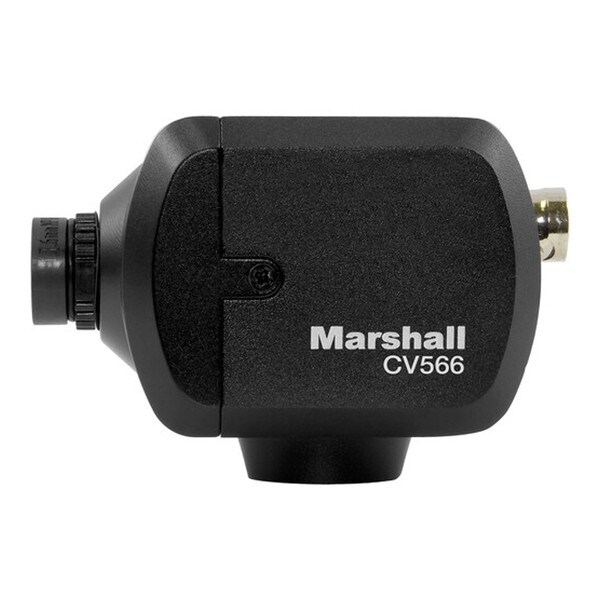

The Marshall Micro CV566 Genlock Camera is built around a next generation Sony 1/2.8" solid-state sensor with 2.2 Megapixels and Tri-Level (Genlock) Sync feature. CV566 delivers exceptional video performance from a micro-size body through 3GSDI & HDMI with true-color even in low-light (0.01Lux). Choose HD resolutions up to 1920x1080p (progressive), 1280x720p (progressive) & 1920x1080i (interlaced) with a wide selection of framerates including 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60fps serving a variety of applications.

Available for OEM Applications, contact us for inquiries by clicking on the “Request Info Button”

  • 2.2 Megapixel (1/2.8") Sony sensor
  • Color Matrix control: Style, Master level/phase, Color level/phase
  • Mic/Line Level (2.5V bias), AUDIO stereo embedding up to 48kHz
  • Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
  • Interchangeable M12 lens mount (includes stock 4.0mm lens 85°H. AOV)
  • Durable aluminum alloy body with rear connection protection ears

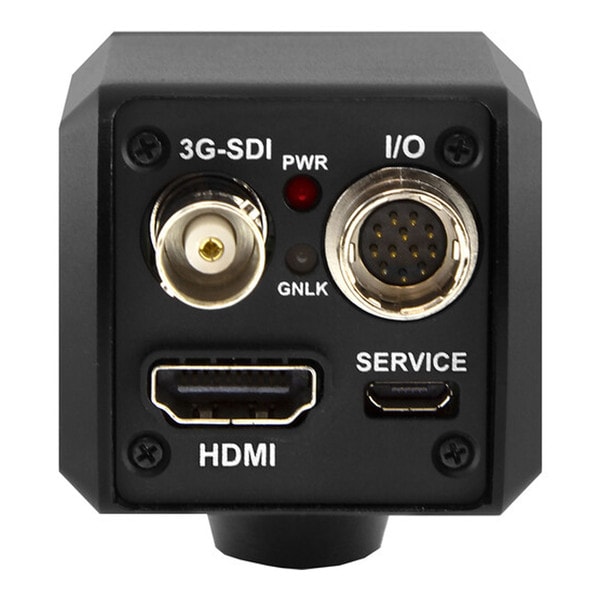

  • 3GSDI + HDMI outputs with Genlock 3G/HD-SDI Tri-Level Sync for quick switching
  • HD Resolutions: 1920x1080p, 1280x720p and 1920x1080i
  • Framerates Supported: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party sources
  • Micro-USB port for firmware upgrades in the field (downloadable from website)
  • Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power
  • Includes 12V+/-10% Power Supply (6W)


Compatible HD Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV-4702.3-3MP2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
CV-4702.8-3MP-IR2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4704.0-3MP4.0mm, F2.6 3MP M12 lens; Horizontal AOV = 85° (1/2.7)
CV-4804.4-12MP 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8")
CV-4706-3MP-IR6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°


Compatible 8MP Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV4804-8MP4.0mm F1.8 8MP M12 Lens - 90° (1/2.5"), 85° (1/2.7"), 80° (1/3")
CV4808-8MP8.0mm F1.8 8MP M12 Lens - 70° (1/2.5"), 62° (1/2.7"), 50° (1/3")
CV4812-8MP12.0mm F1.8 8MP M12 Lens - 50° (1/2.5"), 42° (1/2.7"), 33° (1/3")


Compatible 5MP Prime Lens Options (M12):

Part NumberDescription & Horizontal AOV
V-555.0-5MP-VIS-IR M125.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
V-557.6-5MP-VIS-IR M127.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")


Compatible HD Varifocal Lens Options (M12):

Part NumberDescription & Horizontal AOV
CV-2812-3MP2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 32° ~ 100° (1/2.7")
CV-0622-5MP6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°

Actual viewing angle may vary depends on image sensor specs and camera design. *Horizontal Angle-of-View (AOV) in degrees are approximate and vary according to exact sensor size and design.
**If camera model contains IP67 weatherproof cap, there may be some limitation as to which lenses will allow cap to fit back on camera.
