Clearance
CV620-BI-DEMO

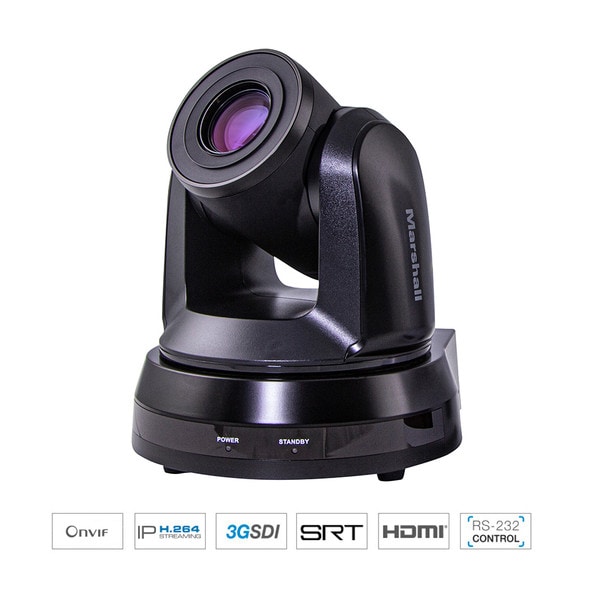

20X Full-HD60 IP PTZ Camera
UPC # 801813233865
| Item | Spec |
| Sensor | SONY IMX327 |
| Video Format | 1080p/60,1080p/30 1080p/59.94,1080i/59.94 1080p/50,1080p/25 1080p/29.97 1080i/60,1080i/50 720p/60 720p/59.94 720p/50 |
| Video Output (HD) Interface | 3G-SDI / HDMI / Ethernet (IP) |
| Optical Zoom | 20X |
| Horizontal Viewing Angle | 60° (Wide) to 3° (Tele) |
| Pan/Tilt Angle | 340° pan and 120° tilt |
| Panning Speed | variable |
| Aperture | F1.6~F3.6 |
| Focal Length (lens spec) | 5.33~110 mm |
| Shutter Speed | 1/1 to 1/10,000 |
| Minimum Object Distance | ∞~1.5m |
| Minimum Illumination | 1.0Lux (F1.6, 50IRE, 30fps) |
| Focus System | Auto, One-push AF, Manual |
| Gain Control | Auto/ Manual |
| White Balance | Auto/ Manual |
| Exposure Control | Auto/Manual |
| 3D NR | yes |
| Aperture | F1.6~F3.6 |
| Focal Length (lens spec) | 5.33~110 mm |
| Image Flip | mirror/ flip/ mirror + flip |
| Preset Positions | 128 savable with optional transition speeeds |
| Control Interface | VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote |
| Control Protocol | ONVIF,VISCA, PELCO D |
| Tally Light | Yes, Front Tally Light |
| PoE | IEEE 802.3at(PoE+) |
| Video Stream | RTSP, RTMP, RTMPS, SRT, MPEG-TS |
| Video Compression | H264: 25/30/50/60 fps 1080p/720p MJPEG 1080p 30/15 fps |
| Audio Input | Line in/ Mic in |
| Audio Output | Ethernet / SDI / HDMI |
| IR Pass-through | Yes |
| IR Receiver | Yes |
| IR Remote Control | Yes |
| Power Consumption | DC: 16W max PoE+:18W max |
| Weight | 1.9 Kg |
| Dimensions | 185 x 186 x 174 (mm) |
| Storage Temps | -20 to 60°C |
| Operating Temps | 0°C to 40°C |
