Clearance

CV620-TWI-DEMO

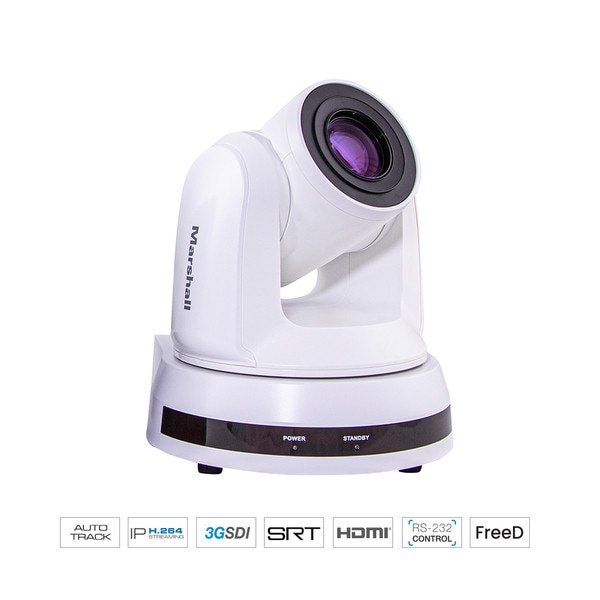

20x AI Track & Follow PTZ Camera

UPC # 801813232813

$1,759.20

Qty	Price

DEMO STOCK

Marshall CV620-TBI/TWI PTZ camera features an ability to automatically track, follow and frame presenters using AI facial learning process for more accurate and smoother self-adjusting maneuvers.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

Item	Spec
Sensor	SONY IMX327
Video Format	1080p/60,1080p/30 1080p/59.94,1080i/59.94 1080p/50,1080p/25 1080p/29.97 1080i/60,1080i/50 720p/60 720p/59.94 720p/50
Video Output (HD) Interface	3G-SDI / HDMI / Ethernet (IP)
Optical Zoom	20X
Horizontal Viewing Angle	60° (Wide) to 3° (Tele)
Pan/Tilt Angle	340° pan and 120° tilt
Panning Speed	variable
Aperture	F1.6~F3.6
Focal Length (lens spec)	5.33~110 mm
Shutter Speed	1/1 to 1/10,000
Minimum Object Distance	∞~1.5m
Minimum Illumination	1.0Lux (F1.6, 50IRE, 30fps)
Focus System	Auto, One-push AF, Manual
Gain Control	Auto/ Manual
White Balance	Auto/ Manual
Exposure Control	Auto/Manual
3D NR	yes
Aperture	F1.6~F3.6
Focal Length (lens spec)	5.33~110 mm
Image Flip	mirror/ flip/ mirror + flip
Preset Positions	128 savable with optional transition speeeds
Control Interface	VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote
Control Protocol	ONVIF,VISCA, PELCO D
Tally Light	Yes, Front Tally Light
PoE	IEEE 802.3at(PoE+)
Video Stream	RTSP, RTMP, RTMPS, SRT, MPEG-TS
Video Compression	H264: 25/30/50/60 fps 1080p/720p MJPEG 1080p 30/15 fps
Audio Input	Line in/ Mic in
Audio Output	Ethernet / SDI / HDMI
IR Pass-through	Yes
IR Receiver	Yes
IR Remote Control	Yes
Power Consumption	DC: 16W max PoE+:18W max
Weight	1.9 Kg
Dimensions	185 x 186 x 174 (mm)
Storage Temps	-20 to 60°C
Operating Temps	0°C to 40°C
