  • 30x UHD30 NDI® PTZ Camera
Clearance

CV630-NDI-DEMO

30x UHD30 NDI® PTZ Camera
UPC # 801813229028
$1,519.20
Quantity discounts available
QtyPrice

DEMO STOCK

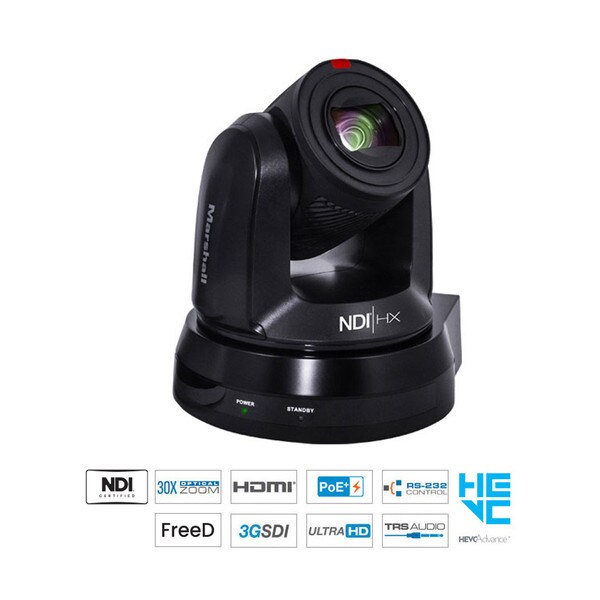

The Marshall CV630-NDI PTZ camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile NDI® networked video solution.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

CV630-NDIW Specifications
Sensor1/2.5" 8MP CMOS
Lens30x optical zoom
Angle of view (H)68~3.5°
Minimum working distance1.5m (Tele/Wide)
Pan +/-170° (Max speed: 100°/sec.)
Tilt -30 °～+90° (Max speed: 100°/sec.)
Minimum °/step0.062° ±5%
Power1. Connector: EIAJ-04
12 V (10.8 to 13.0 V DC)
2. POE + (802.3at)
OutputHDMI/3G-SDI/Ethernet
ControlRS-232/RS-422/Ethernet
OSDEnglish/Chinese
Ouput resolution2160p29.97
2160p25
1080p59.94
1080p50
1080p29.97
1080p25
720p59.94
720p50
1080i59.94 (HDMI and SDI only)
1080i50 (HDMI and SDI only)
Video CompressionH.264
Multiple Video StreamTwo streaming structure
H.264 4K30fps + H.264 640x360 30fps
Audio inx1
IR Select Switchx1
Output Switchx1
Infrared signal outputYes
Preset groups256
Function
Electronic shutter1/1 to 1/10,000s
Flip / MirrorYes
White balanceAuto / Manual
GainAuto / Manual
AE controlAuto / Manual
Brightness controlYes
Backlight compensationOn / Off
Flicker cancelSync with output mode
Focusing systemAuto, One-push AF, Manual
Noise ReductionYes
ProtocolsVISCA, PELCO D, VISCAIP
Ethernet ProtocolsDHCP
DNS
HTTP
HTTPS
IPv4
UDP
NDI
Storage temperature–20°C to +60°C (-4°F to 140°F)
Storage Humidity90%, non-condensing
Operating temperature0°C to 40°C (32°F to 104°F)
Operating Humidity20~80%, non-condensing
Power consumptionPoE: 18W
DC In: 16W
Form Factor
ColorBlack/White
Dimension(WxHxD)174x190x187 mm
Weight2.0Kg
