Clearance

CV730-BHN DEMO

30X UHD60 NDI PTZ Camera

UPC # 801813233148

$1,778.40

Qty	Price

DEMO STOCK

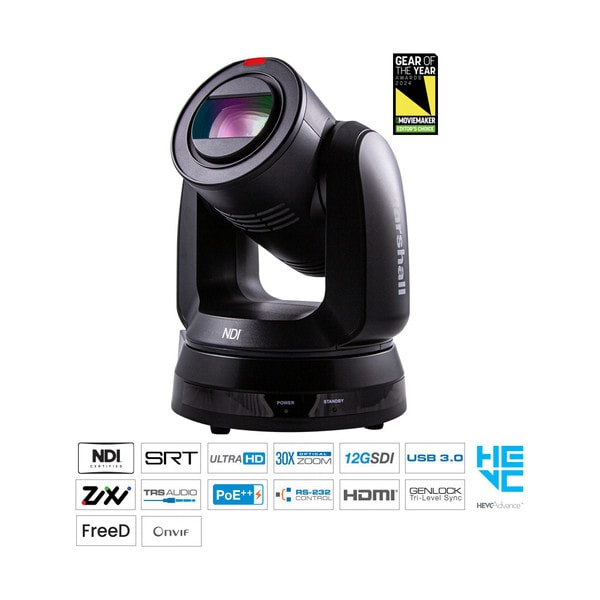

Marshall CV730-BHN PTZ cameras feature 9.2 million-pixel Sony sensors with a long 30x optical zoom range and flexible simultaneous 12GSDI & HDMI outputs along with networkable full-NDI®, NDI|HX3, NDI|HX2, IP (HEVC), SRT and other common IP codecs. The crystal-clear UHD (4K) images up to 3840x2160p at 60fps offers a flexible professional camera source to any production.

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

Qty

Request Info

Specs

9.2 million pixel UHD Sensor (1/1.8") with Sony square pixel array
30x Optical zoom (6.5mm~202mm) starting at 65° H.AOV
Smart Auto-Focus AI System ensures faces and eyes stay in focus at all times
340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
12GSDI, 3GSDI, HDMI2.0, NDI|HB, NDI|HX3 or IP (SRT/HEVC)
3840x2160p (UHD), 1920x1080p (HD), 1920x1080i and 1280x720p
All framerates have access to 59.94, 50, 29.97, 25fps framerates
3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
12V Power Supply included (30W max) and PoE++
Low-light performance – 0.05 lux (F1.6, 50IRE)

CV730-BHN Specifications
Sensor	Sony IMX334 1/1.8 inch
Video Format	Resultion : 4K/1080p/720p Frame Rate : 59.94/50/29.97/25
Video Output (HD) Interface	HDMI,Ethernet,12G-SDI,3G-SDI, USB 3.0
Optical Zoom	30x lens
Horizontal Viewing Angle	63° (Wide) to3° (Tele)
Panning Angle	+/-170°
Panning Speed	160 °/sec
Tilting Angle	-30 °～+90°
Tilting Speed	160 °/sec
Aperture	F1.6~F18
Focal Length (lens spec)	6.5mm~202mm
Shutter Speed	1/1 to 1/10,000 s
Minimum Object Distance	1.5M
Focus System	Auto/Manual
Gain Control	0~45db
White Balance	Auto/Manual
Exposure Control	Auto/Shutter priority/Iris priority/Manual
WDR	Yes
3D NR	Yes
Image Flip	Off/Mirror/Flip/Mirror+Flip
Preset Positions	256
Control Interface	VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote/ USB
Control Protocol	ONVIF,VISCA, PELCO D
Tally Light	Yes
PoE	POE++,IEEE 802.3bt
Video Stream	A Group：RTSP / RTMP / RTMPS / SRT /MPEG-TS B Group：NDI\|HX C Group：High Bandwidth NDI Ouput mode：A+C or B+C
Video Compression	HEVC/ H.264/ MJPEG
Audio Input	MIC/ Line In
Audio Output	Ethernet / 12G-SDI / HDMI2.0 / USB 3.0
IR Pass-through	Yes
IR Receiver	Yes
IR Remote Control	Yes
Power Consumption	DC : ≦39W ，PoE : ≦40W
Weight	2.9Kg
Dimensions	188mmx189mmx233mm
storage temerature	–20°C to +60°C (-4°F to 140°F)
operating temperature	0°C to 40°C (32°F to 104°F)
