Clearance

CV730-ND3W-DEMO

30x UHD60 NDI|HX3 PTZ Camera

UPC # 801813234091

$1,951.20

Qty	Price

DEMO STOCK

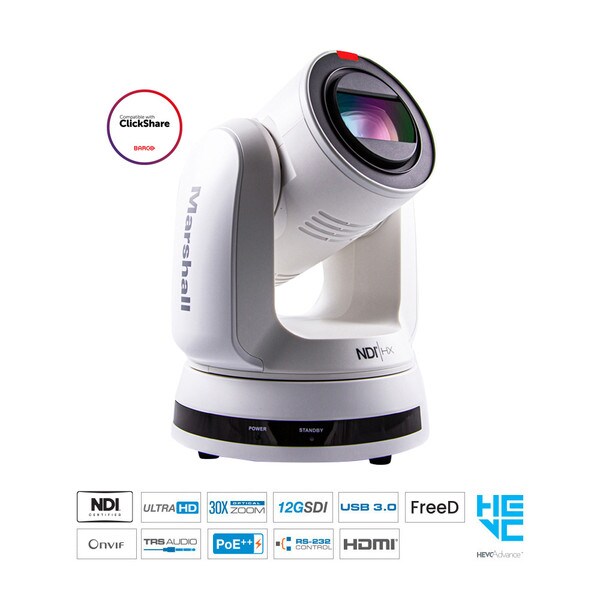

Marshall CV730-ND3W PTZ cameras feature a nine (9) million-pixel sensor with a long 30x optical zoom range and flexible simultaneous 12GSDI and HDMI outputs with NDI®|HX3 and USB3 capability.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

CV730-ND3 Specifications
Sensor	1/1.8" 9.17 MP CMOS (Sony IMX334)
Video Format	2160p: 59.94 / 50 / 29.97 / 25 1080p: 59.94 / 50 / 29.97 / 25 1080i: 59. 94 / 50 720p: 59.94 / 50
Video Output (HD) Interface	12G-SDI, HDMI2.0, Ethernet, USB3.0
Optical Zoom	30x
Horizontal Viewing Angle	63° (Wide) to 3.7° (Tele)
Panning Angle	+170 ~ 170°
Panning Speed	300°/sec
Tilting Angle	+90 ~ -30°
Tilting Speed	300°/sec
Aperture	F1.6 ~ F4.8
Focal Length (lens spec)	6.5~202(mm)
Shutter Speed	1/1 ~ 1/10,000 sec
Minimum Object Distance	1.5m (Wide/Tele)
Focus System	Auto / Manual / Smart AF
Gain Control	Auto, manual
White Balance	Auto, manual
Exposure Control	Auto, manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	256
Control Interface	RS-232 / RS-422 / Ethernet / USB 3.0 / Remote
Control Protocol	VISCA / VISCAIP / PELCO D / NDI / UVC
Tally Light	Yes
IP Protocol	NDI\|HX2/ NDI\|HX3 / RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE	PoE++ (IEEE802.3bt)
Video Stream	NDI : HEVC 4K59.94fps H.264 640x360 29.97fps or RTSP : HEVC 4K 59.94fps H.264 1080p 59.94fps H.264 640x360 29.97fps
Video Compression	HEVC / H.264
Audio Input	Line In/MIC In , Phone Jack 3.5mm x1
Audio Output	Ethernet / 12G-SDI / HDMI2.0 / USB 3.0
IR Pass-through	Yes
IR Receiver	Yes
IR Remote Control	Yes
Power Consumption	POE : 27.5 W DC In : 27 W
Weight	6.6 lbs (3 kg)
Dimensions	189x188x233 (mm)
storage temerature	-20 to 60 °C
operating temperature	0 °C to 40 °C
