  • 30x UHD60 IP (HEVC) PTZ Camera
Clearance

CV730-WH-DEMO

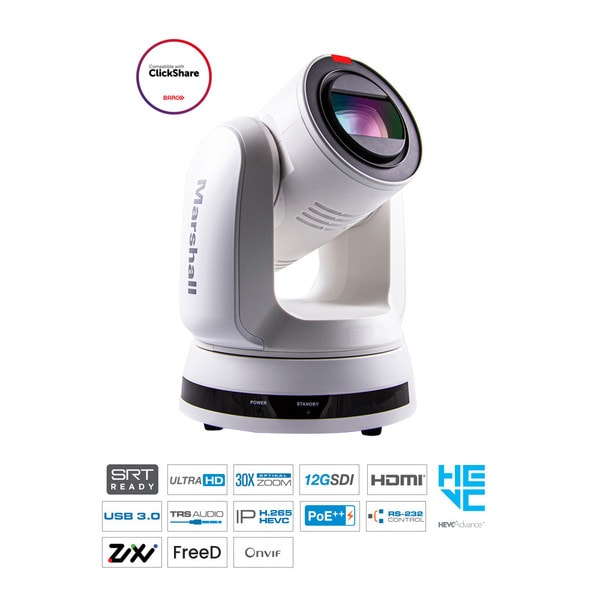

30x UHD60 IP (HEVC) PTZ Camera
UPC # 801813228410
$1,767.00
Quantity discounts available
QtyPrice

DEMO STOCK

Marshall CV730 features a 30x optical zoom block and flexible 12GSDI/HDMI/IP simultaneous outputs with crystal clear UHD images up to 3840x2160p at 60fps.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

CV730-BK / CV730-WH Specifications
Sensor1/1.8" 8MP CMOS
Lens30x optical zoom
Angle of view (H)63~3.3°
Minimum working distance1.5m (Tele/Wide)
Motor
Pan +/-170° (Max speed: 100°/sec.)
Tilt -30 °～+90° (Max speed: 100°/sec.)
Minimum °/step0.062° ±5%
Interface
Power1. Connector: EIAJ-04
12 V (10.8 to 13.0 V DC)
2. POE ++ (802.3bt)
OutputHDMI/12G-SDI/Ethernet/USB3.0
ControlRS-232/RS-422/Ethernet/USB
OSDEnglish/Chinese
Ouput resolution2160p59.94
2160p50
2160p29.97
2160p25
1080p59.94
1080p50
1080p29.97
1080p25
1080i/59.94 (SDI & HDMI only)
1080i/50 (SDI & HDMI only)
720p59.94
720p50
Video CompressionHEVC/H.264
Multiple Video StreamStream 1 :HEVC 4K 60fps
Stream 2 :H.264 1080p 60fps
Stream 3 : H.264 640x360 30fps
Audio inx1
Audio Compression FormatAAC/G.711
IR Select Switchx1
Output Switchx1
Infrared signal outputYes
Preset groups256
Function
Electronic shutter1/1 to 1/10,000 s
Flip / MirrorYes
White balanceAuto / Manual
GainAuto / Manual
AE controlAuto / Manual
Brightness controlYes
Backlight compensationOn / Off
Flicker cancelSync with output mode
Focusing systemAuto, One-push AF, Manual
Noise ReductionYes
ProtocolsVISCA, PELCO D, VISCAIP, ONVIF
Storage temperature–20°C to +60°C (-4°F to 140°F)
Operating temperature0°C to 40°C (32°F to 104°F)
Power consumptionPoE: 23.5 W
DC In: 23 W
Form Factor
ColorBlack/White
Dimension(WxHxD)232 x 188 x 189 mm
Weight3.0Kg
