W2697-00-656

Miniature Balanced / Lavalier Microphone Cables

UPC # 801813006780

$301.95

Qty	Price

2c. 28awg Bal Mic - (Headst) - Black - 656' Roll - Spooled

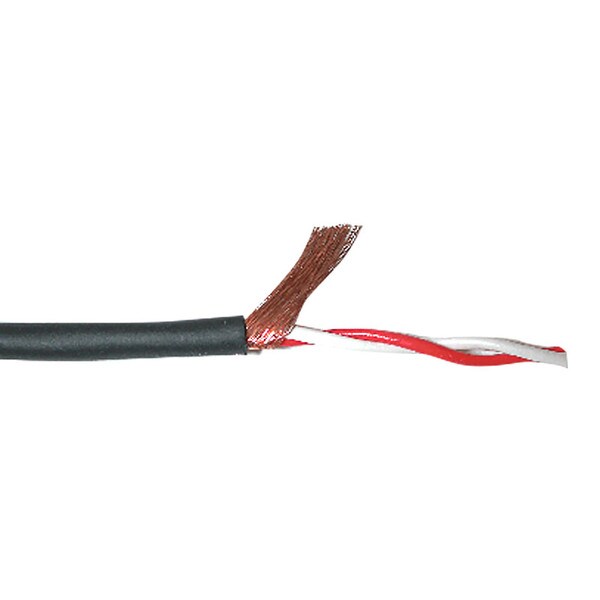

W2697 cable is constructed with a served (spiral) shield. Miniature microphone cables feature the necessary mechanical strength (tensile strength and long flex life) and flexibility for lavalier microphones and other applications.

Available for OEM Applications, contact us for inquiries by clicking on the “Request Info Button”

Qty

Request Info

Specs

Configuration
Part No.		W2697
No. of Conductor		2
Conductor	Details	16/0.08 A
	Size(mm²)	0.08mm² (#28 AWG)
Insulation	Ov. Dia.(mm)	0.85Ø (0.033")
	Material	PVC
	Colors	Red / White
Filler Thread		-
Shield		Served Shield Approx. 60/0.08A
Jacket	Ov. Dia.(mm)	2.5Ø (0.098")
Material		Flexible PVC
Colors		Black
Roll Sizes		200m (656Ft)
Weight		1.8kg / 200m
