W2862-08-500

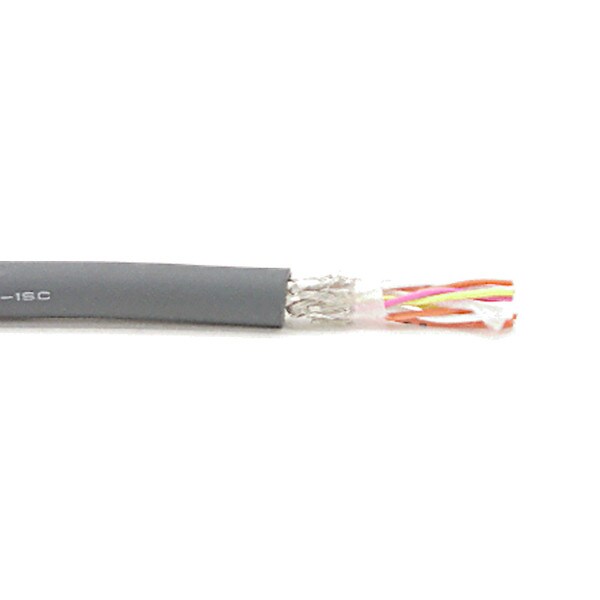

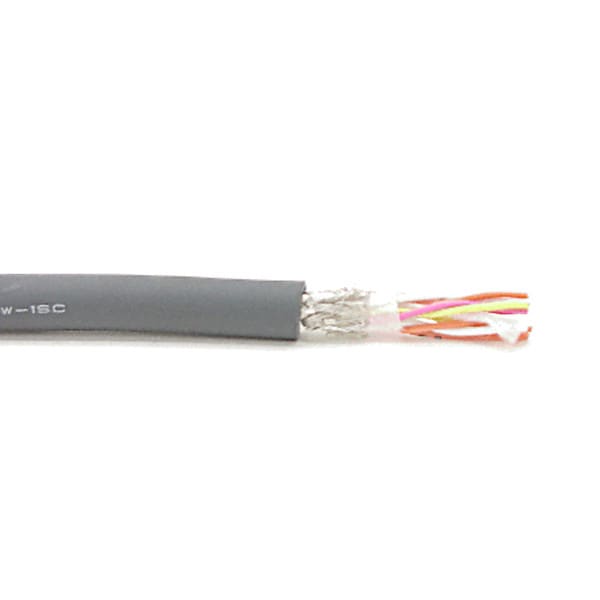

Mogami Overall Shielded Cable

UPC # 801813011722

$919.95

Qty	Price

12c. 28awg Individual - Gray - 500' Roll

Multi purpose #28AWG superflexble overall shielded cable available in twisted pair configuration for electromagnetic noise rejection as well as in economy and easy wiring general round configuration in compact gray jacket. All these cables are approved as UL SUBJECT 758 AWM 20002 VW-1SC.

Available for OEM Applications, contact us for inquiries by clicking on the “Request Info Button”

Qty

Request Info

Specs

CABLE SPECIFICATIONS

Conductor	Details	7/0.127TA (7×#37AWG)
Conductor	Size(mm²)	0.088mm² (#28AWG)
Insulation	Ov. Dia.(mm)	0.95Ø (0.0374")
Insulation	Material	PVC
Overall Shield	Type	Braided shield
Overall Shield	Coverage	Minimum 85%
Ov. Jacket	Material	Flexible PVC
Ov. Jacket	Color	Dark Gray

ELECTRICAL & MECHANICAL CHARACTERISTICS

DC Resistance at 20°C	0.21Ω/m(0.064Ω/Ft)
Voltage Breakdown	Must withstand at DC 500V/15sec.
Insulation Resistance	10000 MΩ × m Min. at DC 500V , 20°C
Chracteristic Impedance*	90 ‾ 115Ω (at 10MHz)
Cable Skew*	0.517nS/m
Delay Time*	5.5 ‾ 6.1n S/m
Velocity Ratio*	0.55 ‾ 0.60
Emigration	Non-emigrant to ABS resin
Applicable Temperature	-20°C‾ +70°C(-4°F‾ +158°F)
Standard	UL 758 AWM 20002 VW-1SC 30V 80°C

*Data for Twisted Pair Type Only.
