Clearance

OR-185-AFHD-DEMO

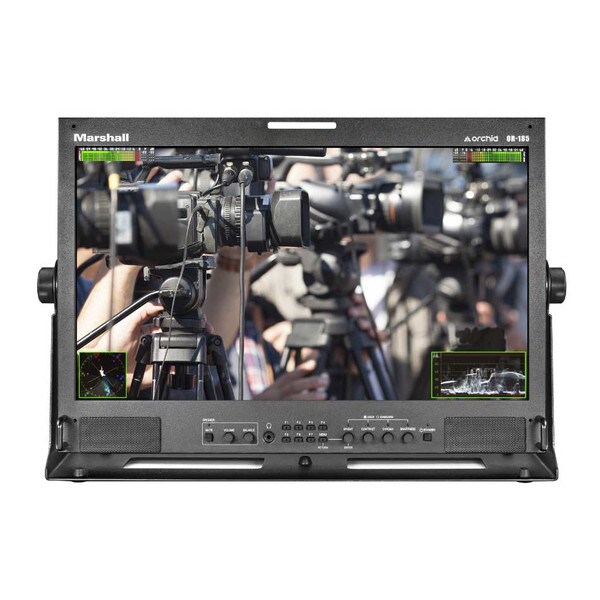

18.5" IPS Desktop Display Monitor (Demo Unit)

UPC # 801813225334

$1,837.50

Qty	Price

DEMO STOCK

The OR-185-AFHD comes standard with two auto-sensing 3G-SDI inputs, DVI-I, VGA, and analog inputs. This unit can be used as a portable stand-alone monitor equipped with front panel stereo speakers, integrated carrying handle, and desktop stand. An optional rack mount kit with tilt capability is also available.

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

Qty

Request Info

Specs

OR-185-AFHD SPECIFICATIONS
Panel	Type			TFT-LCD
	Display Area			408.96 x 230.4, 18.5" (Diagonally)
	Pixels			1920(H) x 1080(V), Full HD
	Pixel Pitch (mm)			0.213 (H) x 0.213 (V)
	Color Depth			16.7M (8bit), true color
	Brightness (cd/m²)			300 (cd/m²)
	Contrast Ratio			1000:1
INPUT	ANALOG	COMPOSITE	CVBS	3 x BNC, 1 x HD-15
		S-VIDEO	Y/C
		COMPONENT	YPbPr
		RGB	Sync on Green
	SDI	SMPTE-424M	3G (2.97 GB/s)	2 x BNC
		SMPTE-292	HD (1.485 GB/s)
		SMPTE-259M	SD (270 MB/s)
	DVI			1 x DVI-I
	HDMI			N/A
OUTPUT	SDI	SMPTE-424M	3G (2.97 GB/s)	1 x BNC (Loop-through)
		SMPTE-292	HD (1.485 GB/s)
		SMPTE-259M	SD (270 MB/s)
	HDMI			N/A
Supported Formats	SDI	SMPTE 425M-AB	YCBCR, 4:2:2, 10-bit	1080p (60/59.94/50)
			YCBCR, 4:2:2, 12-bit	1080p (30/29.97/25/24/23.98) 1080i (60/59.94/50) 1080PsF (30/29.97/25/24/23.98)
			YCBCR(RGB) 4:4:4, 10-bit	1080p (30/29.97/25/24/23.98) 1080i (60/59.94/50) 1080PsF (30/29.97/25/24/23.98) 720p (60/59.94/50/30/29.97/25/24/23.98)
			YCBCR(RGB) 4:4:4, 12-bit	1080p (30/29.97/2524/23.98) 1080i (60/59.94/50) 1080PsF (30/29.97/25/24/23.98) 2048x1080p24, 2048x1080PsF24
			YCBCR(RGBA) 4:4:4:4, 10-bit	1080p (30/29.97/25/24/23.98) 1080i (60/59.94/50) 1080PsF (30/29.97/25/24/23.98) 720p (60/59.94/50p/30/29.97/25/24/23.98)
		SMPTE 274M	YCBCR, 4:2:2, 10-bit	1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98) 1080PsF (30/29.97/25/24/23.98)
		SMPTE 296M	YCBCR, 4:2:2, 10-bit	720p (60/59.94/50/30/29.97/25/24/23.98)
		SMPTE 125M		525i (NTSC, 480i60)
		ITU-R BT.601		625i (PAL, 575i50)
	ANALOG	CVBS		NTSC, PAL, 480i60, 575i50
		COMPONENT		480i/480p/575i/576p/720p/1080i/1080p
		COMPONENT		640x480/800x600/1024x768/1280x1024 @60Hz
	HDMI Sync	CEA-861-E	CE Video format	N/A
	HDMI Sync	CEA-861-E	IT Video format (VGA(IBM VGA), SGA, XGA, SXGA(VESA))	N/A
	HDMI Source	CEA-861-E	CE Video format	N/A
	HDMI Source	CEA-861-E	IT Video format (VGA, SGA, XGA, SXGA)	N/A
	DVI	DDWG DVI 1.0	IT Video format	640x480/800x600/1024x768/1280x1024 @60Hz
	DVI	DDWG DVI 1.0	CE Video format	480p (60/59/94) 480i (60/59.94) 576p50 575i50 720p (60/59.94/30/29.97/25/24/23.98) 1080i (60/59.94/50) 1080p (60/59.94/30/29.97/25/24/23.98)
General	Power			100~240VAC@50~60Hz Or DC 24V
	Power Consumption			Approx. 40W(24V, 1.5A)
	Operating	Temperature (°C)		0°C~40°C
	Operating	Humidity (%)		30%~85% (Non-Condensing)
	Storage	Temperature (°C)		-20°C~60°C
	Storage	Humidity (%)		0%~90%
	Weight			33 lbs.
	Dimensions (WxDxH, mm)			442 x 307 x 80
Audio	INPUT		3.5mm stereo jack	1 (Rear)
	OUTPUT	+4dBu(1.228mVrms)	3.5mm stereo jack	1 (Rear)
		+4dBu(1.228mVrms)	3P XLR	N/A

		Headphone	3.5mm stereo jack	1 (Front)
		Headphone	6.3ø stereo jack	N/A
	Speaker			Built-in (3W+3W Stereo Speaker)
