  • OR-185-B - 18.5" Premium Master Confidence Broadcast Monitor
Clearance

OR-185-B

OR-185-B - 18.5" Premium Master Confidence Broadcast Monitor
UPC # 801813190847
$1,837.50
Quantity discounts available
QtyPrice

DEMO STOCK

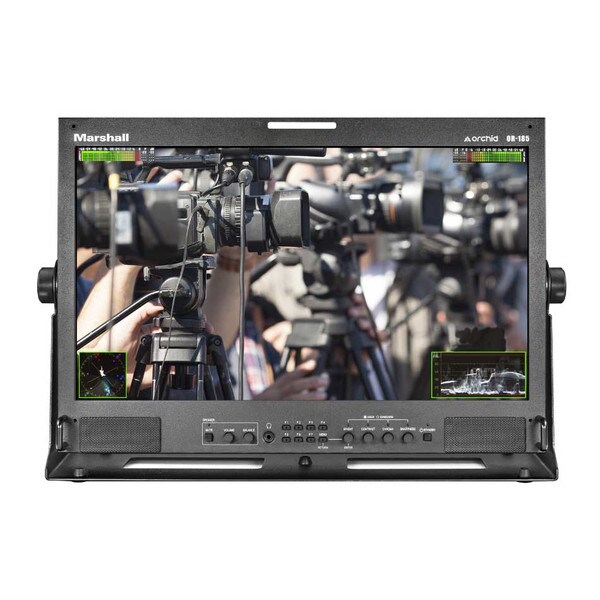

The Marshall OR-185-3GSDI is a master confidence monitor for broadcast control rooms, transfer facilities, and production editing areas, that has a range of professional production analysis tools packed into an 18.5-inch, best-of-breed IPS panel. The OR-185-3GSDI has been designed to offer the features and reliability required for mission-critical applications; all day, every day.

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

OR-185-3GSDI SPECIFICATIONS
PanelTypeTFT-LCD
Display Area408.96 x 230.4, 18.5" (Diagonally)
Pixels1920(H) x 1080(V), Full HD
Pixel Pitch (mm)0.213 (H) x 0.213 (V)
Color Depth16.7M (8bit), true color
Brightness (cd/m²)300 (cd/m²)
Contrast Ratio1000:1
INPUTSDISMPTE-424M3G (2.97 GB/s)2 x BNC
SMPTE-292HD (1.485 GB/s)
SMPTE-259MSD (270 MB/s)
OUTPUTSDISMPTE-424M3G (2.97 GB/s)1 x BNC (Loop-through)
SMPTE-292HD (1.485 GB/s)
SMPTE-259MSD (270 MB/s)
Supported FormatsSDISMPTE 425M-ABYCBCR, 4:2:2, 10-bit1080p (60/59.94/50)
YCBCR, 4:2:2, 12-bit1080p (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
YCBCR(RGB) 4:4:4, 10-bit1080p (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
720p (60/59.94/50/30/29.97/25/24/23.98)
YCBCR(RGB) 4:4:4, 12-bit1080p (30/29.97/2524/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
2048x1080p24, 2048x1080PsF24
YCBCR(RGBA) 4:4:4:4, 10-bit1080p (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
720p (60/59.94/50p/30/29.97/25/24/23.98)
SMPTE 274MYCBCR, 4:2:2, 10-bit1080i (60/59.94/50)
1080p (30/29.97/25/24/23.98)
1080PsF (30/29.97/25/24/23.98)
SMPTE 296MYCBCR, 4:2:2, 10-bit720p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE 125M525i (NTSC, 480i60)
ITU-R BT.601625i (PAL, 575i50)
GeneralPower100~240VAC@50~60Hz Or DC 24V
Power ConsumptionApprox. 40W(24V, 1.5A)
OperatingTemperature (°C)0°C~40°C
Humidity (%)30%~85% (Non-Condensing)
StorageTemperature (°C)-20°C~60°C
Humidity (%)0%~90%
Weight33 lbs.
Dimensions (WxDxH, mm)442 x 307 x 80
AudioINPUT3.5mm stereo jack1 (Rear)
OUTPUT+4dBu(1.228mVrms)3.5mm stereo jack1 (Rear)
+4dBu(1.228mVrms)3P XLRN/A
Headphone3.5mm stereo jack1 (Front)
6.3ø stereo jackN/A
SpeakerBuilt-in (3W+3W Stereo Speaker)
