OR-2410-DEMO

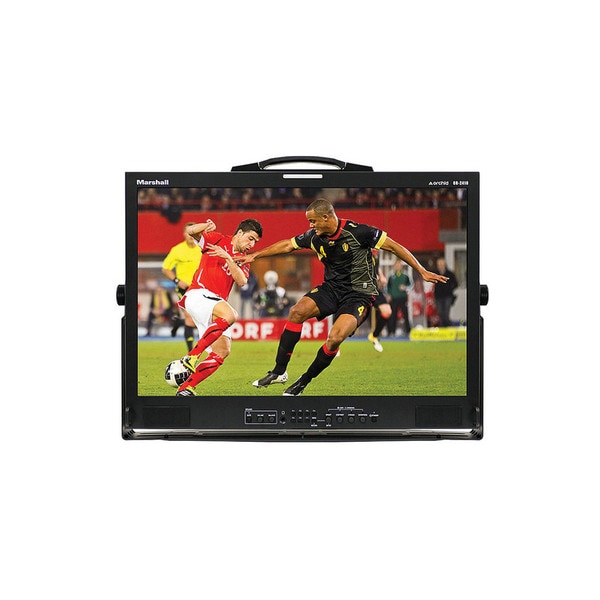

24.1" Desk Top Monitor (Demo Unit)
UPC # 801813194746
$4,222.00
Quantity discounts available
QtyPrice

DEMO STOCK

The ORCHID® OR-2410 is at home in any control room or production environment. Producers, directors, editors and engineers will appreciate the high quality "grade one" performance of the 24" full resolution IPS panel.

Certified B-Stock and Demo Products
All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

  • Supports most standard video formats
  • High Resolution (1920x1200) LCD panel
  • Real-time Waveform Monitor
  • Real-time Color Vectorscope
  • Real-time 16CH Audio Level Meter
  • Real-time Histogram
  • Real-time Video Analytics
  • Broadcast Tally System
  • 3G-SDI Input and Active Loop-Through
  • 3D Review
  • False Color Filter
  • Peaking Filter
  • Time Code (VITC/LTC)
  • Red/Blue/Green/Mono Channel
  • Accurate White Balance
  • Accurate Gamma
  • Precision Gamma Calibration
  • ClipGuide
  • H/V Delay
  • Aspect Setting
  • Various Markers
  • Scan Setting
  • On-screen Menu Display
  • Automatic Color Calibration with ORCHID Color Probe
  • External Remote Control
  • Stereo Speakers



SPECIFICATIONS
PanelTypeTFT-LCD
Display Area24.1" (Diagonally)
Pixels1920(H) x 1080(V) WUXGA
Pixel Pitch (mm)0.36375(H) x 0.36375(V)
Color Depth1.07B (10-bit), 30-bit True Color
Brightness (cd/m²)400 (cd/m²)
Contrast Ratio1450:1
INPUTANALOGCOMPOSITECVBS3 x BNC, 1 x HD-15
S-VIDEOY/C
COMPONENT YPbPr
RGBSync on Green
SDISMPTE-424M3G (2.97 GB/s)2 x BNC
SMPTE-292HD (1.485 GB/s)
SMPTE-259MSD (270 MB/s)
DVI1 x DVI-I
HDMIN/A
OUTPUTSDISMPTE-424M3G (2.97 GB/s)1 x BNC (Loop-through)
SMPTE-292HD (1.485 GB/s)
SMPTE-259MSD (270 MB/s)
HDMIN/A
Supported FormatsSDISMPTE 425M-ABYCBCR, 4:2:2, 10-bit1080p (60/59.94/50)
YCBCR, 4:2:2, 12-bit1080p (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
YCBCR(RGB) 4:4:4, 10-bit1080p (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
720p (60/59.94/50/30/29.97/25/24/23.98)
YCBCR(RGB) 4:4:4, 12-bit1080p (30/29.97/2524/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
2048x1080p24, 2048x1080PsF24
YCBCR(RGBA) 4:4:4:4, 10-bit1080p (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
720p (60/59.94/50p/30/29.97/25/24/23.98)
SMPTE 274MYCBCR, 4:2:2, 10-bit1080i (60/59.94/50)
1080p (30/29.97/25/24/23.98)
1080PsF (30/29.97/25/24/23.98)
SMPTE 296MYCBCR, 4:2:2, 10-bit720p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE 125M525i (NTSC, 480i60)
ITU-R BT.601625i (PAL, 575i50)
ANALOGCVBSNTSC, PAL, 480i60, 575i50
COMPONENT480i/480p/575i/576p/720p/1080i/1080p
640x480/800x600/1024x768/1280x1024 @60Hz
HDMI SyncCEA-861-ECE Video formatN/A
IT Video format (VGA(IBM VGA), SGA, XGA, SXGA(VESA))
HDMI SourceCEA-861-ECE Video formatN/A
IT Video format (VGA, SGA, XGA, SXGA)
DVIDDWG DVI 1.0IT Video format640x480/800x600/1024x768/1280x1024 @60Hz
CE Video format480p (60/59/94)
480i (60/59.94)
576p50
575i50
720p (60/59.94/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/30/29.97/25/24/23.98)
GeneralPower100~240VAC @ 50~60Hz or DC 24V
Power ConsumptionApprox. 125W (24V, 5.2A)
OperatingTemperature (°C)0°C~40°C
Humidity (%)30%~85% (Non-Condensing)
StorageTemperature (°C)-20°C~60°C
Humidity (%)0%~90%
Weight33 lbs.
Dimensions (W x D x H)30.3" x 21.7" x 4.2"
AudioINPUT3.5mm stereo jack1 (Rear)
OUTPUT+4dBu(1.228mVrms)3.5mm stereo jack1 (Rear)
+4dBu(1.228mVrms)3P XLRN/A
Headphone3.5mm stereo jack1 (Front)
6.3ø stereo jackN/A
SpeakerBuilt-in (3W+3W Stereo Speaker)
