Clearance

OR-702-B

Premium 3RU Dual 7" Broadcast LCD Rack Mount Monitor (B-Stock)

UPC # 801813149197

$2,223.75

Qty	Price

B STOCK

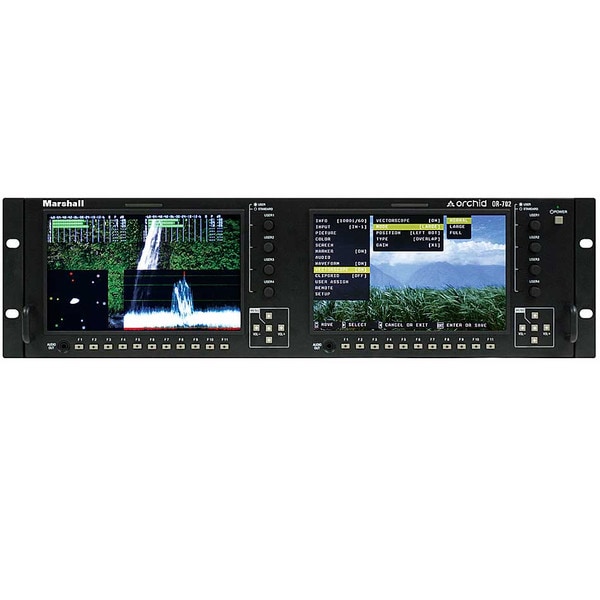

The OR-702 Dual 7" ORCHID® rack mount monitor has all the features that customers have asked for and more. The OR-702 is 3RU and has 11 user-assignable function keys as well as 4 user-assignable rotary encoders.

Certified B-Stock and Demo Products

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

OR-702 specifications
Panel	Number of Panels	2
	Panel Size	7” Diagonal
	Resolution	800 x 480
	Aspect Ratio	16:10
	Active Area	6” x 3.6”
	Type	LCD Panel
	Brightness	350 cd/m²
	Contrast	400:1
	Color Gamut	YUV, RGB
	Viewing Angles (CR>=10)	55°~65° x 40° ~50°
	Backlight type	LED
Features	Video Formats	1080p/1080i/720p/625i/525i
	Loss of Input Curtain	Yes
	Color Temperature	D65,93
	Blue Only	Yes
	Waveform	Yes
	Vectorscope	Yes
	Self-Sensing	Yes
	Re-clocked/Re-Shaped	Yes
Input Connectors	SD-SDI	Yes
Input Connectors	HD-SDI	Yes
Output Connectors	SD-SDI	Yes
Output Connectors	HD-SDI	Yes
Audio	Audio Meters	Yes
	Embedded audio from SDI	Yes
	Haedphone Jack	Yes
	Input Status Display	Yes
Control Inputs	Tally / GPI	Tally
	RS-485/422 w/ Loop-Through	No
	Ethernet	No
	Controls on front Panel	Yes
	User-Defined Function Buttons	Yes
	Pivot Angle	Yes
	Handles/Rack Ears	Yes
Power	Voltage	12VDC
	Consumption	2 Amp (Max) @ 12VDC
	Power Switch	Yes
	Connector	4-Pin XLR Connector
Compliance	Compliance	CE approved
Environmental	Operating Temperature (Cº)	32° F to 104° F
	Storage Temperature (Cº)	-4° F to104° F
	Rack Unit dimensions	18.9” x 5.2” x 2.4”
	Weight (Main Body)	6 lbs
