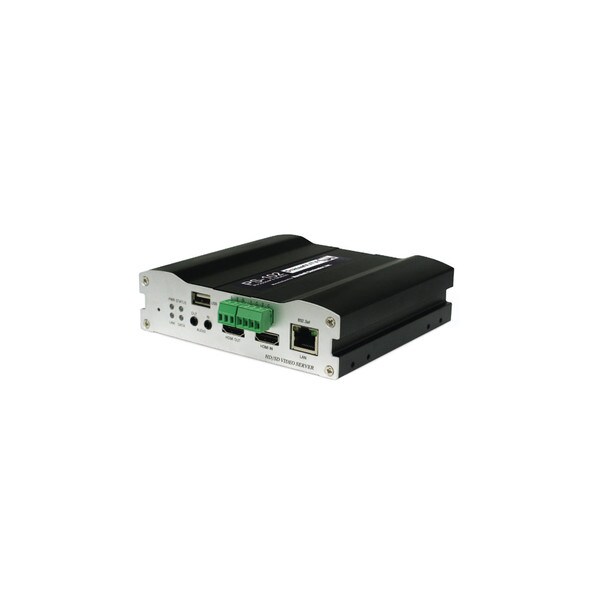

PS-102-HDSDI-DEMO
2.0 MP High Resolution Encoder / Producer Station with HD-SDI
UPC # 801813194487
- High Quality AV Encoder / Producer Station
- Full HD resolution 1080p Encoding
- Up to 30fps @ 1920 x 1080 streaming
- H.264 & H.264 MJPEG Dual Streaming
- Stereo Codec AAC for Broadcast applications
- HD-SDI Video Input
- HDMI Video Input
- Composite Video Input
- Audio Input
- Built-in PoE (Power Over Ethernet: 802af)
- Automatic Control of Video Bit Rate Control (32kbps ~ 10Mbps)
- PSIA and ONVIF compliant
| Section | Specifications | |
| System | System Mode | Encoder |
| Network | Network Interface | Ethernet 10 / 100Base-T (RJ-45) |
| Network Protocol | TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP | |
| Video | Standards | Main Stream: H.264 |
| Secondary Stream: N/A | ||
| Bitrate | 32 ~ 10,240 Kbps | |
| Resolution | 1920x1080/60i ~ 352x240/30fps, 18 resolution step | |
| Frame Rate Range | 1 ~ 30fps | |
| Input 1 | 1 x HDMI type-A, HDMI RX | |
| Input 2 | 1 x BNC:HD-SDI | |
| Output 1 | N/A | |
| Output 2 | N/A | |
| Motion Detection | N/A | |
| Audio | ||
| Standards | AAC | |
| Sample Rate | AAC: 32kHz | |
| Data Rate | AAC: 64Kbps, 128Kbps | |
| Input | 1 x Line-In (Mini-Stereo) | |
| Output | N/A | |
| Serial | Port 1 | N/A |
| Port 2 | N/A | |
| Data Rate | N/A | |
| Sensor/ Alarm | Sensor Input | N/A |
| Alarm Output | N/A | |
| Beep | N/A | |
| Reset Button | N/A | |
| User Interface | System Status | 4 x LED |
| Storage | Recording/Backup | 1 x USB 2.0 Port |
| Software | VS Manager/VMS-16 NVR | N/A |
| Physical | ||
| Dimensions | 134(W) X 125(D) X 35(H)mm | |
| Weight | 504 g | |
| Power Source | DC 12V/0.8A, PoE(Power over Ethernet): 802.3af | |
| Power Consumption | Max 9.6W | |
| Operating Temp. | -10° C ~ 50°C / 14°F ~ 122°F | |
