CV503-U3 -DEMO

USB3.0 Miniature POV Camera
UPC # 801813228489
$214.00

DEMO STOCK

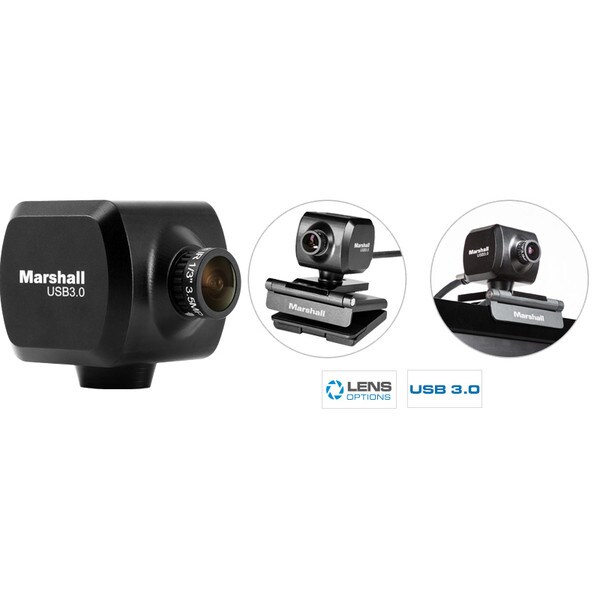

The Marshall CV503-U3 is a straight forward USB3.0 HD camera with secure locking USB connection and customizable lens options.

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

CV503-U3 Specifications
SensorImage Sensor 1/2.8" Progressive CMOS (Approx. 2.5 Megapixel)
Scanning System 16:9 Progressive
Sync. System Internal
Effective Pixel1920(H) x 1080(V)
Min. Illumination 0.2 Lux (Day)
VideoUSB 3.0Avalilable resolutions and frame-rates:
1920x1080p @ 60/59.94/50/30/29.97/25/24/23.98fps
1920x1080i @ 60/59.94/50fps
1280x720p @ 60/59.94/50/30/29.97/25/24/23.98fps
OpticsLens2.8mm (90°AOV) standard with ability to change M12 lens to custom Focal Length
UVCBrightness0 ~ 20 (Default 10)
Contrast0 ~ 64 (Default 32)
Hue- 128 ~ 127 (Default 0)
Saturation0 ~ 20 (Default 15)
Sharpness0 ~ 20 (Default 10)
Gamma1 ~ 11 (Default 6)
White BalanceAuto, 0 ~ 255 (Default 128 and Auto)
Backlight Compensation0 ~ 4 (Default 0)
Gain0 ~ 12 (Default 0)
Power Line Frequency50Hz/60Hz (Anti Flicker)
Camera ControlZoom (Digital)0 ~ 255 (Default 0)
Focus-
ExposureAuto, -13 ~ 3 (Default -7 and Auto)
Aperture (Iris)Auto, 0 ~ 170 (Default 100 and Auto)
Pan-
Tilt -
Roll-
Low Light CompensationOn/Off
General Operation Temperature -10°C ~ 50°C
Power InputOver USB
Dimensions (W x H x D)44 x 46.5 x 47.95mm (without lens)
1.73 x 1.83 x 1.89 in. (Without lens)
Weight (Net)Approx. 0.23 lbs (without lens) / 0.24 lb (with lens)
Hardware RequirementsCPUi3 or higher
GPUCore speed of 1500Mhz or higher
RAM4GB or higher
Operating System RequirementsOSWindows 7 or higher
macOSX 10.8 or higher
