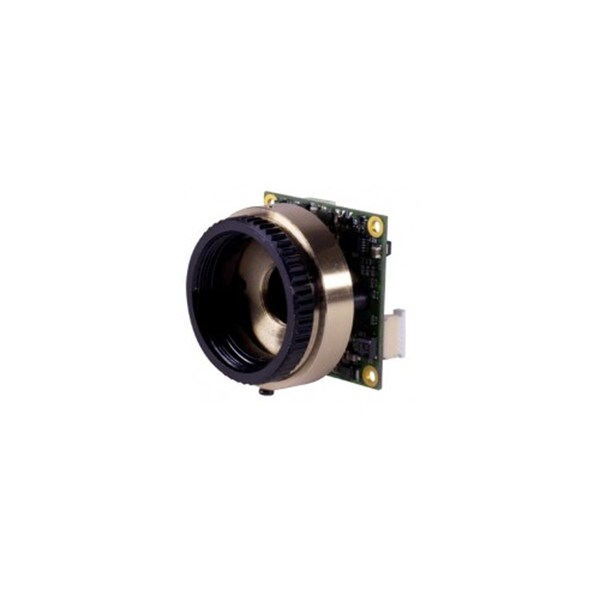

V-1217-C/CS

420 TV Line CCD DSP B/W Camera, C/CS
UPC # 801813174618
$132.00
Quantity discounts available
QtyPrice
V-1217-C/CS is a special 1/3 CCD sensor single board B&W camera designed for OEM, industrial process, test and measurement, law enforcement, military, medical, scientific and security applications. 420 TV Line DSP CCD sensor, low light 0.03 lux F1.2 performance provides exceptional Near IR imaging. Great performance for low light machine vision, medical, scientific, and security applications, RoHS compliant.
More Info
C/CS lens mount for a large variety of lens options for any application, [lens not included]. Miniature lens version model V-1217-PCB-3.7 also available.

Features compact 32mm X 32mm board size, Auto Gain Control, Mirror On/Off, 2X Digital Zoom, Electronic Shutter, low 12 VDC 1.2W power input.

  • 1/3" CCD BLACK & WHITE
  • 420 TV LINES
  • MIRROR ON/OFF
  • AUTO GAIN CONTROL
  • DIGITAL ZOOM (2X)
SPECIFICATIONS
PART NO.V-1217-C/CS
TV SYSTEMEIA
IMAGE SENSOR1/3-inch CCD Image Sensor
CCD TOTAL PIXELS537(H) X 505(V)
SCANNING SYSTEM525 lines, 60 fields/sec
SYNC SYSTEMInternal
MINIMUM ILLUMINATION0.03Lux F1.2 5600°K
LENS MOUNTC / CS
RESOLUTION420 TVL
GAIN CONTROLAGC
S / N RATIO 52dB ( MIN ) / 60dB ( TYP ) (AGC OFF)
ELECTRONIC SHUTTER1/60~1/120,000 sec.
AUTO IRISA.E.S.
BLCON/OFF Switchable
MIRROR FUNCTIONSwitchable
DIGITAL ZOOM (2X)Switchable
VIDEO OUTPUTComposite 1.0V p-p at 75 ohm
GAMMA CORRECTION0.45
OPERATING TEMPERATURE-20° TO +50° C
OPERATIONAL HUMIDITYWithin 85%RH
POWER SUPPLYDC12V ±10% 1.2W
