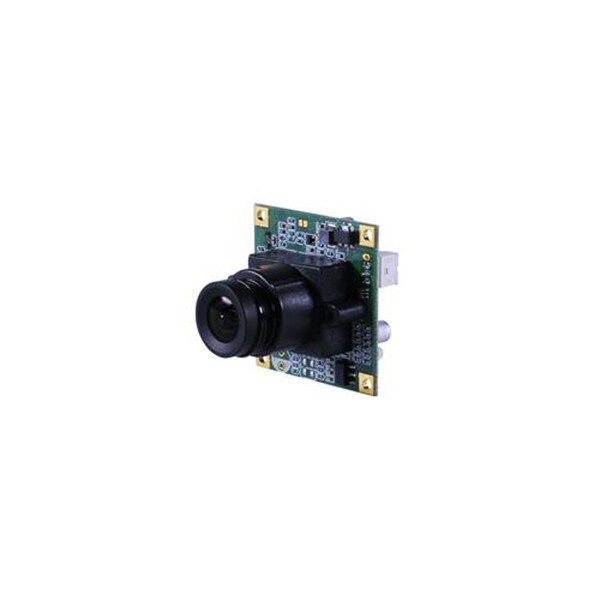

V-1217-PCB-3.7

420 TV Line CCD DSP B/W Camera
UPC # 801813174625
$122.00
Quantity discounts available
QtyPrice
V-1217-PCB-3.7 is a special 1/3 CCD sensor single board B&W camera designed for a variety of OEM, industrial process, test and measurement, law enforcement, military, medical, scientific and security applications, RoHS compliant.

420 TV Line DSP CCD sensor, low light 0.5 lux @ F2.0 performance provides amazing Near IR performance in near zero lighting to 1,000nm when used with Marshall V-4700 Series miniature Visible / IR Corrected miniature lensing
More Info
The V-1217-PCB-3.7 comes with 3.7mm F2.0 92° HFOV miniature M12 lens. Camera is compatible with Marshall V-4300 CCTV Series, V-4400 HiRes Series, V-4700 Visible / IR Corrected to 1,000nm miniature lensing. C/CS lens mount version model V-1217-C/CS also available.

Featuring compact 32mm X 32mm board size, Auto Gain Control, Electronic Shutter, low 12 VDC 1.2W power input, light 17g weight enables one off to tens of thousands OEM product and application potential.
PART NO.V-1217-PCB-3.7
TV SYSTEMEIA
IMAGE SENSOR DEVICE1/3" interline transfer CCD
IMAGE SENSOR AREA4.8mm x 3.6mm
HORIZONTAL FREQUENCY15.734KHz
VERTICAL FREQUENCY59.9Hz
TOTAL PIXELS542(H) x 492(V)
SCANNING SYSTEM525 lines, 60 fields/sec EIA
RESOLUTION420 TV lines horizontal
MINIMUM ILLUMINATION0.5 lux at F2.0
ELECTRONIC SHUTTERAuto electronic shutter
1/60 to 1/100000 sec. continuous
S/N RATIO> 48 dB
VIDEO SIGNAL OUTPUT1.0Vp-p composite video signal at 75 ohm load
GAMMA CORRECTION0.45
GAIN CONTROLAuto Gain Control
POWER SUPPLY12V DC ±10% 1.2W
LENS & VIEW ANGLE3.7 mm F2.0 / 92°
OPERATING TEMPERATURE-20° TO +50° C
OPERATIONAL HUMIDITYWithin 85%RH
DIMENSIONS / WEIGHT32(W) x 32(H) x 30(D) mm / 17g
