Low Light Color Board Cam 3.6mm Lens M12
UPC # 801813066517

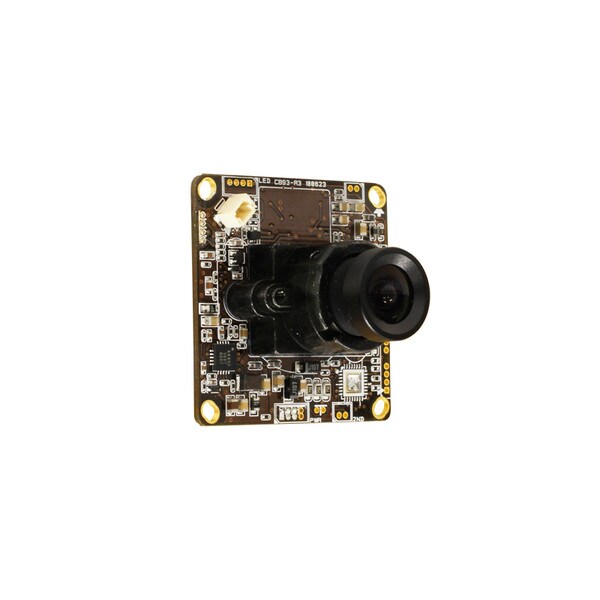

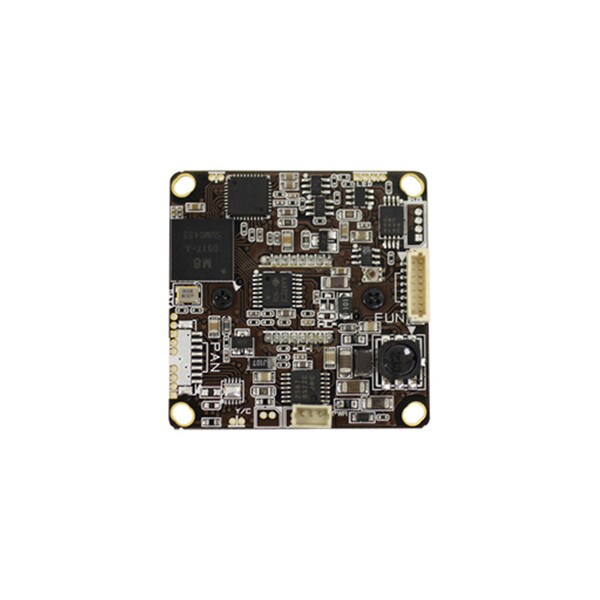

The V-1270 is a special board camera designed for various security, industrial, OEM and scientific applications. Including installed 3.6mm miniature lens. The M12 lens mount allows the option of most Marshall V-4300 and V-4400 Series miniature lensing.
More Info
The 0.1 lux rating makes this camera especially useful with Marshall's V-PL-CS / M12 compatible Wide Angle Pin Hole Lens models for covert applications.
Pick-up Element1/3" Interline Sony Super HAD II CCD
CCD TypeNTSC 1/3" 410K Pixels
Resolution520 Lines
Min Illumination0.1 Lux [F1.2 30 IRE ]
Lens3.6mm, F2.5
Shutter SpeedNTSC 1/60s - 1/100,000s
S/N Ratio50dB or more (AGC Off)
Input VoltageDC 12V (10V ~ 16V) Max 1.2W or less
Dimensions38mm (L) x 38mm (W) x 29.3mm (D)
Operation Temperature-10°C ~ +55°C
Storage Temperature-20°C ~ +70°C
Operational Humidity<90% (Non-condensing)
