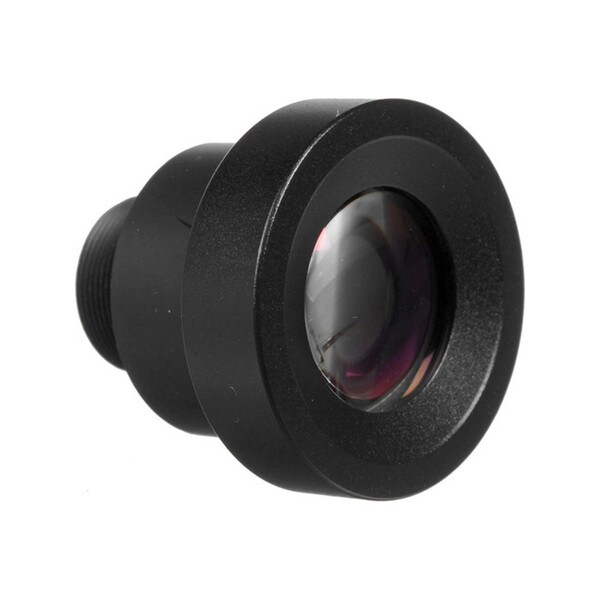

V-4325

25mm F2.5 4-Element Miniature Lens
UPC # 801813045192
$35.00
Quantity discounts available
QtyPrice
The 4300 series lenses use a M12 x 0.5 thread and are compatible with various bullet size and board cameras. The V-LH04 and V-LH08 lens holders can be used for OEM designs using our V-4300 series lenses. Custom designed metal or plastic lens holders are available to meet any requirement. Excellent for robotics, imaging, machine vision, security, OEM applications
Part No.: V-4325 Focal Length: 25.0mm Relative Aperture: 2.5 Sensing Area: 1/3", 1/4" Back Focal Length: 11.8 # of Elements: 4 D1 (mm): ø15.0 D2 (mm):ø25.0 Min. Object Distance: 20cm-∞ Weight: 18g Length (mm): 23.2 Length LT (mm): 31.3
