Clearance

V-LCD173HR-B

17.3" Professional LCD Rack Mount Monitor (B-Stock)

UPC # 801813225426

$524.25

Qty	Price

B STOCK

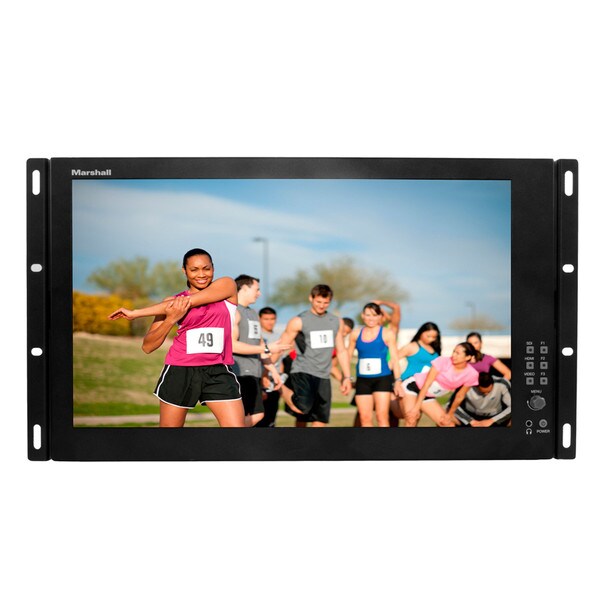

The Marshall V-LCD173HR 17.3-inch native resolution (1920 x 1080) production monitor comes with a range of professional adjustment settings and convenient HDMI/HDSDI inputs and outputs.

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

Qty

Request Info

Specs

Model Name	V-LCD173HR
Role of Usage	17.3” LCD Monitor
Connectors
Inputs	SDI BNC x 1 with Loop Out HDMI x 1 with Loop Out Composite BNC x 1 with Loop Out Audio L/R RCA x 2 Line Level Tally HD-15 Pin compatible with GPI open collector or contact closure to ground/earth USB 3.0 USB-A x 1 (Firmware Updates) XLR-12V 4 pin x 1
Outputs	3.5 mm Front Panel Stereo Headphone Jack
Hardware
	Included Rack Ears x 2 (6RU height) for standard 19” rack mount Back Panel Supports VESA 100x100mm and 75x75mm mounting systems Optional Desktop Stand Model V-ST15 Available Weight 7.9 lbs. (3.6 Kg) Product Dimension: 1.29” x 17.75” x 10.5” / 3.28cm x 45cm x 26.7cm (D x L x W)
Panel Information
Native Resolution:1920 x 1080 pixels Contrast Ratio: 700:1 Luminance: 300 nits Display colors: 16 million colors Viewing Angle: 178-degrees H & V
Supported Formats / Frame Rates
Composite Input	NTSC PAL
SD-SDI Input	480i 59.94Hz 576i 50Hz
HD-SDI	720p 25, 29.97, 30, 50, 59.94, 60 Hz 1080i 50, 59.94, 60 Hz 1080psf 23.98, 24.00 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz
3G-SDI Level A	1080p 50, 59.94, 60 Hz 10800i 50, 59, 60 Hz 1080psf 23, 24, 25, 29.97, 30 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz
SD - HDMI	480i 59.94, 60 Hz 576i 50 Hz 480p 59.94, 60 Hz 576p 50Hz
HD - HDMI	720p 25, 29.97, 30, 50, 59.94, 60 Hz 1080i 50, 59.94, 60 Hz 1080psf 23.98, 24 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz
