Clearance

V-LCD173HR-DT-B

17.3" Professional LCD Desktop Monitor

UPC # 801813231458

$805.59

Qty	Price

B STOCK

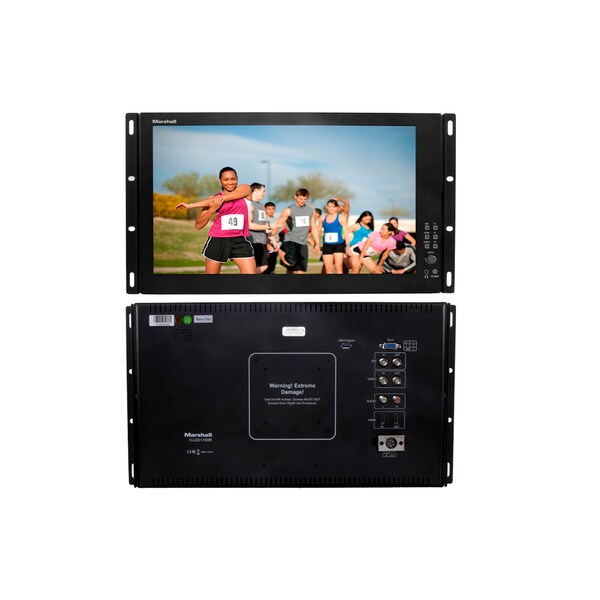

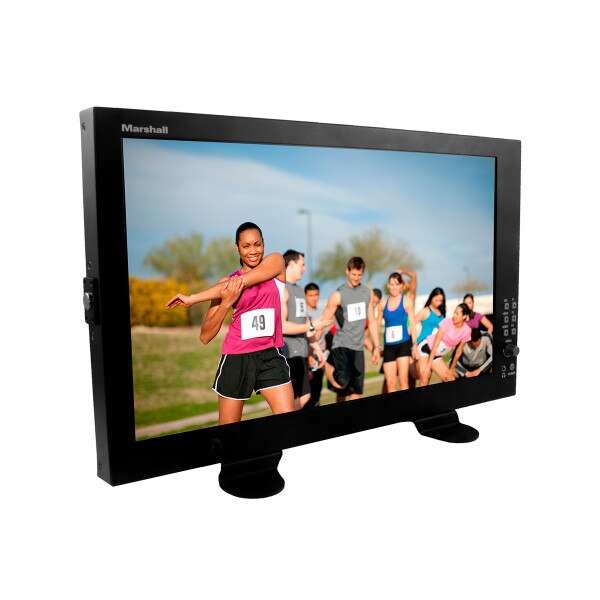

The Marshall V-LCD173HR 17.3-inch native resolution (1920 x 1080) production monitor comes with a range of professional adjustment settings and convenient HDMI/HDSDI inputs and outputs. The Marshall V-LCD173HR comes with built-in histogram, peaking, false color, exposure, adjustable safety markers, and more, and can monitor up to two audio channels as well.

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

Qty

Request Info

Specs

Rec 709 compliant
LED Tally lights
HDMI/HDSDI inputs and outputs with conversion ability
Range of broadcast and production adjustment settings including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, histogram, and more
Rack ears or VESA mount options
BNC connectors
Two-channel audio monitoring
Image flip ability
Headphone jack

Model Name	V-LCD173HR
Role of Usage	17.3” LCD Monitor

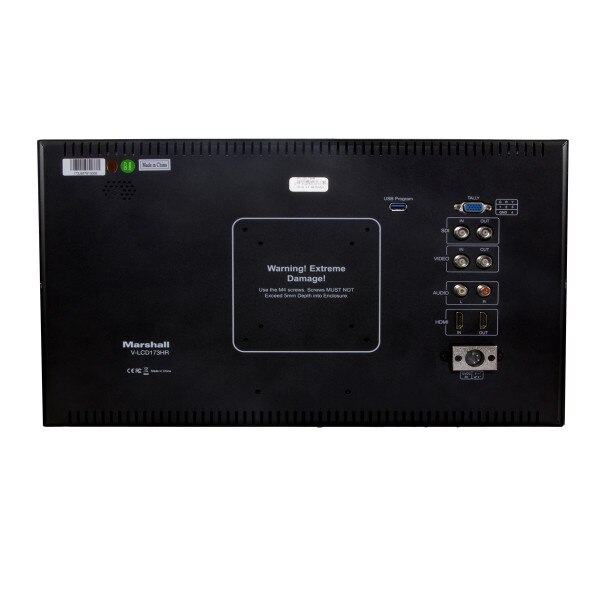

Connectors
Inputs	SDI BNC x 1 with Loop Out HDMI x 1 with Loop Out Composite BNC x 1 with Loop Out Audio L/R RCA x 2 Line Level Tally HD-15 Pin compatible with GPI open collector or contact closure to ground/earth USB 3.0 USB-A x 1 (Firmware Updates) XLR-12V 4 pin x 1
Outputs	3.5 mm Front Panel Stereo Headphone Jack
Hardware
	Included Rack Ears x 2 (6RU height) for standard 19” rack mount Back Panel Supports VESA 100x100mm and 75x75mm mounting systems Optional Desktop Stand Model V-ST15 Available Weight 7.9 lbs. (3.6 Kg) Product Dimension: 1.29” x 17.75” x 10.5” / 3.28cm x 45cm x 26.7cm (D x L x W)
Panel Information
Native Resolution:1920 x 1080 pixels Contrast Ratio: 700:1 Luminance: 300 nits Display colors: 16 million colors Viewing Angle: 178-degrees H & V
Supported Formats / Frame Rates
Composite Input	NTSC PAL
SD-SDI Input	480i 59.94Hz 576i 50Hz
HD-SDI	720p 25, 29.97, 30, 50, 59.94, 60 Hz 1080i 50, 59.94, 60 Hz 1080psf 23.98, 24.00 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz
3G-SDI Level A	1080p 50, 59.94, 60 Hz 10800i 50, 59, 60 Hz 1080psf 23, 24, 25, 29.97, 30 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz
SD - HDMI	480i 59.94, 60 Hz 576i 50 Hz 480p 59.94, 60 Hz 576p 50Hz
HD - HDMI	720p 25, 29.97, 30, 50, 59.94, 60 Hz 1080i 50, 59.94, 60 Hz 1080psf 23.98, 24 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz
