LCD 4.3" TFT Monitor, NTSC/PAL, ROHS
UPC # 801813182002

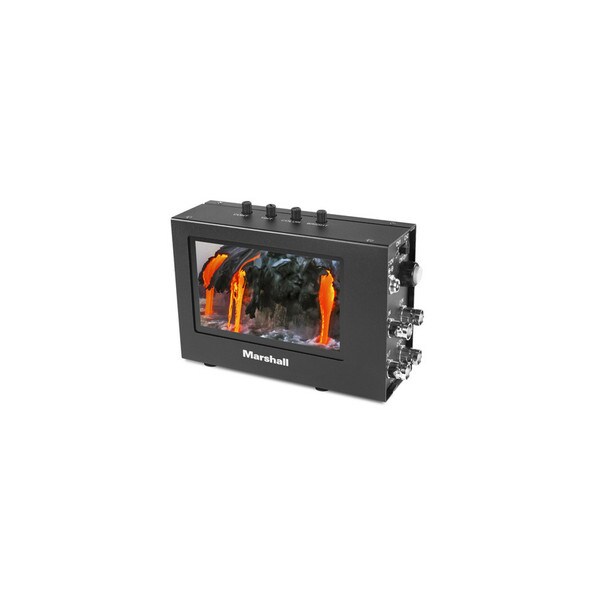

The LCD4.3-PRO-R is a 4.3" TFT LCD monitor providing broadcast quality picture for color and B/W video applications. New high resolution high brightness LCD panel delivers high quality picture under various lighting conditions. Monitor case made from durable black anodized aluminum with protective anti-glare glass in front of LCD panel. Its slim (1.8") and lightweight (0.8 lb) design makes it ideal for field mobile and fixed monitoring applications. Dual composite video inputs with NTSC/PAL auto recognition and built-in active video loop-through using professional grade BNC connectors. Monitor has a 1/4" mount on case bottom. RoHS compliant. Recommended Power Supply: V-PS12-500 - 12 volt, 500 mA (Not Included)
More Info
V-LCD4.3-PRO-R specifications
PanelPanel Size4.3" Active Matrix LCD
Resolution480 x 3 RGB x 272
TypeLCD Panel
Brightness500 cd/m²
Backlight Life20,000 hrs
Video FormatsNTSC/PAL Auto Detect
Viewing Angles [CR>=10]70/70/50/70 [L/R/T/B]
InputsDual Composite Video Inputs
Operating Temp [C]-20 ~ 50
Storage Temp [C]-30 ~ 60
Power Consumption12VDC, 350mA
Dimensions5.51”W x 3.62”H x 1.81”D
Dual Composite Video Inputs
Display (Viewing Area)
4.3” Active Matrix LCD
Resolution (Pixels)
480 × 3 RGB × 272
500 cd/m²
Viewing Angles [CR>=10]
70/70/50/70 [L/R/T/B]
Backlight Life
20,000 hrs
Operating Temp [C]
-20 ~ 50
Storage Temp [C]
-30 ~ 60
NTSC/PAL Auto Detect
5.51"W × 3.62"H × 1.81"D
Power Consumption
12VDC, 350mA
0.8 Lbs
