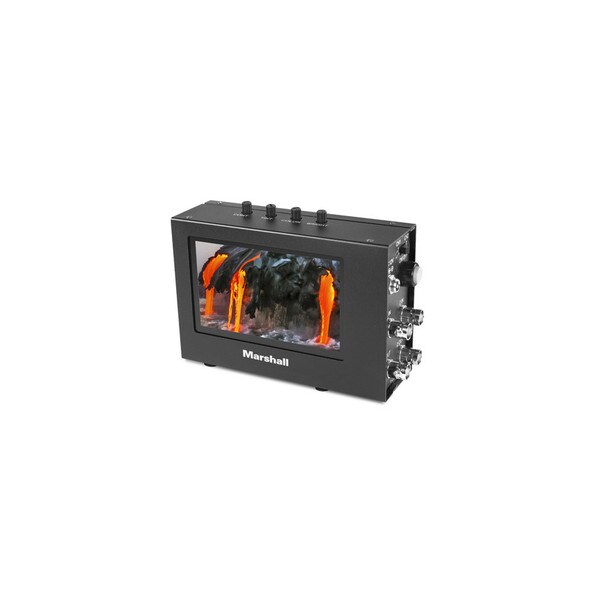

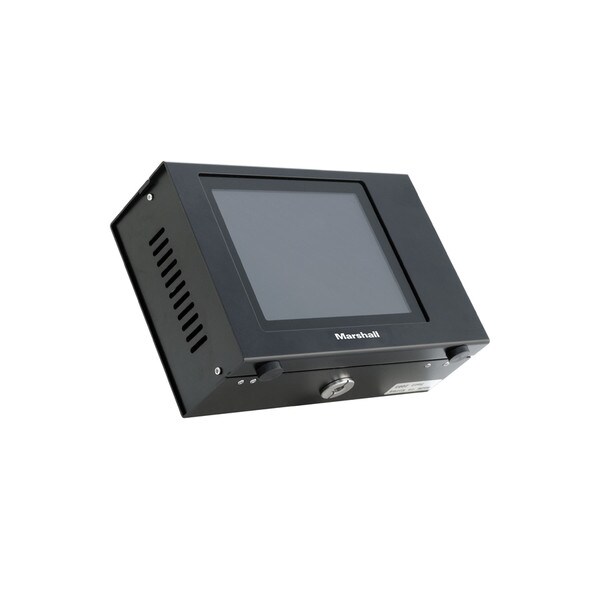

V-LCD4.3-PRO-R-DEMO
LCD 4.3" TFT Monitor, NTSC/PAL, ROHS - DEMO
UPC # 801813225860

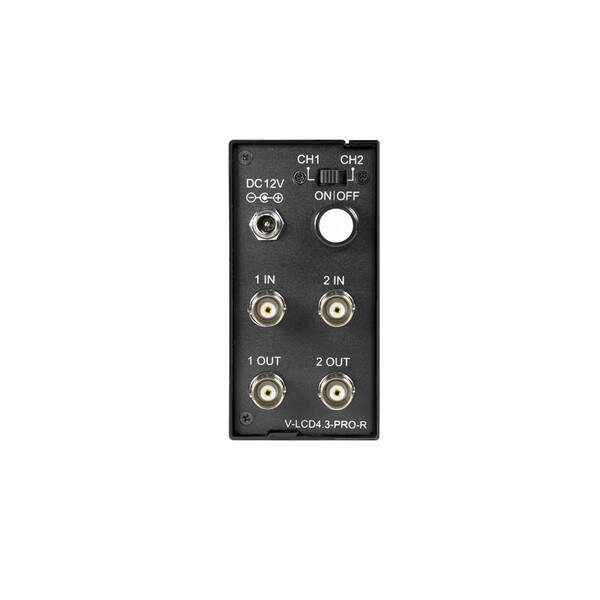

Inputs | Dual Composite Video Inputs |
Display (Viewing Area) | 4.3” Active Matrix LCD |
Resolution (Pixels) | 480 × 3 RGB × 272 |
Brightness | 500 cd/m² |
Contrast | 500 |
Viewing Angles [CR>=10] | 70/70/50/70 [L/R/T/B] |
Backlight Life | 20,000 hrs |
Operating Temp [C] | -20 ~ 50 |
Storage Temp [C] | -30 ~ 60 |
System | NTSC/PAL Auto Detect |
Dimensions | 5.51"W × 3.62"H × 1.81"D |
Power Consumption | 12VDC, 350mA |
Weight | 0.8 Lbs |
