V-PL-HITEMP-IR-B

8.0mm F2.0 , 8um~14um Infrared High Temp, 222mm , M34 x 0.75 mount Pinhole Lens
UPC # 801813231502
$2,391.00
Quantity discounts available
QtyPrice
High temperature harsh environments may have low visible light, smoke, haze, fog, other conditions obstructing visible vision. These conditions do not matter as thermal lens, thermal camera is imaging IR temperature.
More Info
    PARAMETERS
  • Focal length: 8.0mm
  • Field of view: 2w = 90°
  • Relative aperture: F2.0
  • Pinhole diameter: 4.0mm
  • Image size: 12mm
  • Spectral range: 8 ~ 14μm
  • Lens Mount: M34 x 0.75
  • 220mm length

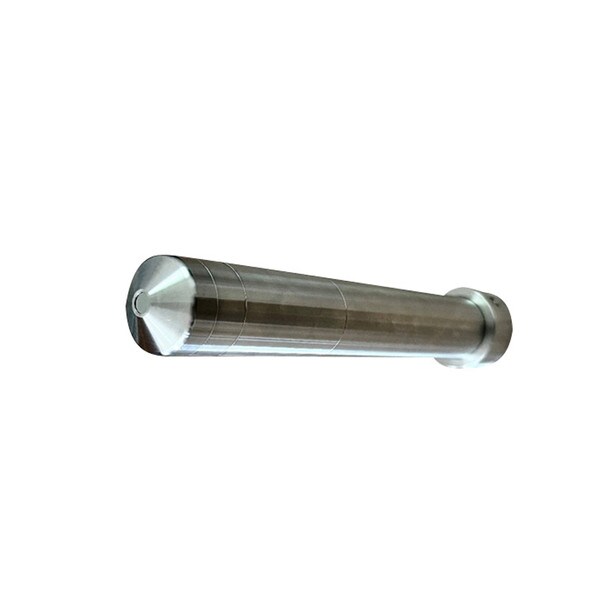

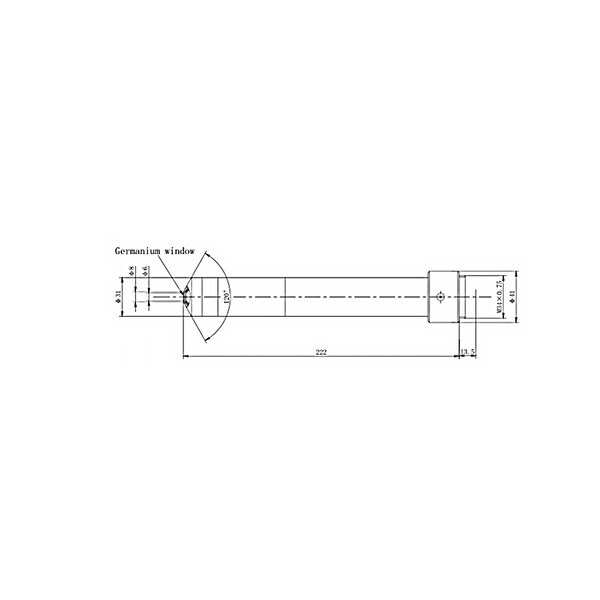

V-PL-HITEMP-IR-B [220mm length] - Available replaceable germanium window tip. High quality stainless steel housing enabling use in toxic chemical areas with high temperature radiation.
