  • 4" 4 Panel HD-SDI/SDI Monitor - B STOCK
Clearance

V-R44P-HDSDI-B

4" 4 Panel HD-SDI/SDI Monitor - B STOCK
UPC # 801813102260
$1,199.00

B STOCK

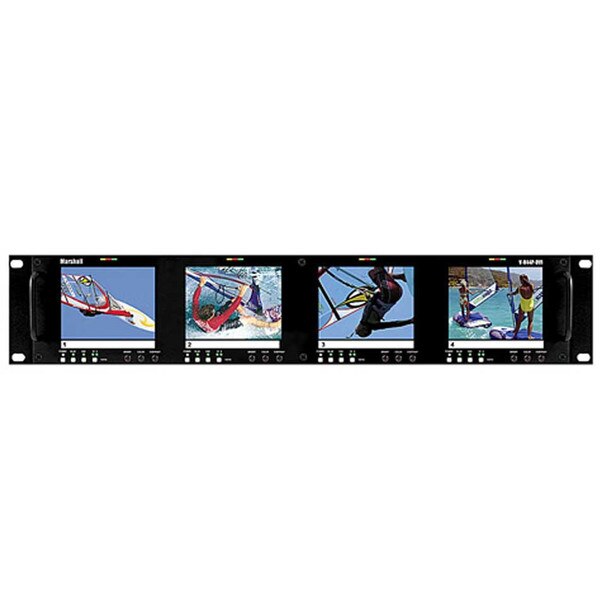

The V-R44P is a rack mountable unit that offers four 4" high-resolution active matrix LCD panels. Each of the four 480 x 234 pixel screens has its own set of controls for color, tint, contrast, and brightness. Each panel has its own input with active loop-through feature, a 3 color tally system, and auto-recognition of NTSC or PAL formats. This unit is only 2U high, can be tilted up to 100 degrees while rack mounted, and is the smallest video monitoring system of its kind. All V-R Series models are constructed of steel and aluminum, and include a power supply.


Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

  • Ultra-compact design fits in EIA standard rack 2U high
  • High Resolution, 480 x 234 pixels, 112,320 total
  • Ultra bright panels with 300 cd/m² luminance
  • NTSC/PAL auto recognition
  • Individual color, tint, brightness and contrast controls
  • Unique 100 degree tilt adjustment while mounted in rack
  • Three color, self-powered tally system provided for each panel
  • Dry Erase Marker for EZ Identifying of screens


SPECIFICATIONS
Number of Screens
4
Display (Viewing Area)
3.5" Diagonal, (2.83"H x 2.07"V) (72.0mm x 52.56mm)
Resolution ( RGB Dots)
640H x RGB x 480V
Viewing Angles
100° H x 50° V
Dot Pitch
0.1125 mm (W) x 0.1095mm (H)
Contrast Ratio
350:1
Pixel Response
<30ms
Brightness (in cd/m²)
250
System
HD-SDI/SDI all standards and frame rates
APPLICATIONS
  • Studio Monitor Wall
  • Remote/OB Van
  • EFP/ENG
  • Camera Shading

  • Fly Packs
  • VTR/DDR Replay
  • ISO Recording
