V-R563P-SDI-B

Triple 5.6-Inch Rack Mounted with Composite and SDI Inputs - B Stock
UPC # 801813096835
$899.00

B STOCK

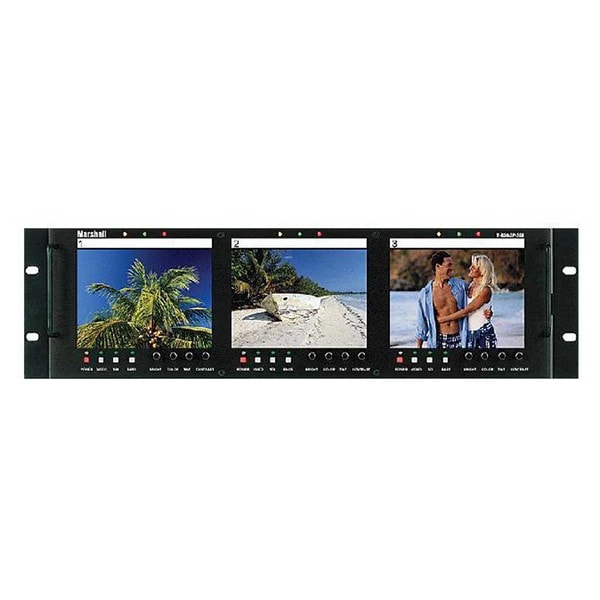

The V-R63P-SDI is a rack mountable unit that has three independently controlled 5.8" active matrix LCD panels with active loop through feature. These 16:9 high-resolution panels have a pixel count of 1200 x 234, and are rated at a very bright 350 candle luminance. Each panel has an SDI and a composite video input with a NTSC/PAL switch on the back.

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

  • High Resolution LCD panel, 1200 × 234 pixels,
    280,800 total
  • Ultra bright 350 candle luminance
  • Two inputs per monitor: Composite Video and
    SDI (SMPTE 259M)
  • 3 High Resolution 10-bit SDI to composite
    video converters (one per channel)
  • NTSC/PAL switchable via switch on rear of the unit
  • SDI active loop- through has active clock recovery
    with automatic 75Ohm termination
    • Switchable 4:3 and 16:9 ratios
    • Three color, self-powered tally system provided
      for each panel
    • Individual color, tint, brightness and contrast controls for each panel
    • Built-in memory saves current setup when unit is
      powered down
    • Built-in Color Bar Generator
    • Unique 100 degree tilt adjustment while mounted in rack


    SPECIFICATIONS
    Display (Viewing Area)
    5.8" (5.01" × 2.83")
    Resolution (Pixels)
    1200 H × 234 V
    Dot Pitch
    0.318mm × 0.307mm
    Brightness (in cd/m²)
    350
    System
    NTSC/PAL config. switch
    Inputs per panel (total)
    1 (3) Composite
    1 (3) SDI
    Dimensions
    19.125"W × 5.14"H × 2.5"D
    Approx. Weight
    5 lbs
    Power Consumption
    9 VDC, 3.0 Amps
