Clearance

V-R63P-B

Triple 5.8" Wide Screen Rack Mounted Full Color Active Matrix LCD Panel

UPC # 801813086683

$799.00

Qty	Price

B STOCK

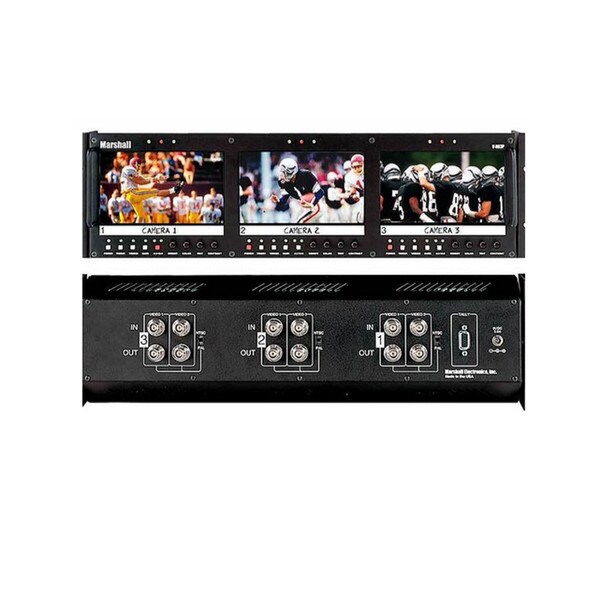

The V-R63P is a rack mountable unit that has three independently controlled 5.8" active matrix LCD panels with active loop through feature. These 16:9 high-resolution panels have a pixel count of 1200 x 234, and are rated at a very bright 350 candle luminance.

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

Qty

Request Info

Specs

High Resolution LCD panel, 1200 × 234 pixels,
280,800 total
Ultra bright 350 candle luminance
Switchable 4:3 and 16:9 ratios
NTSC/PAL switchable via switch on rear of unit
Auto Signal Detection, blue screen appears
when signal is not present
Three color, self-powered tally system
provided for each panel
Individual color, tint, brightness and
contrast controls for each panel
Built-in memory saves current setup
when unit is powered down
Built-in Color Bar Generator
Unique 100 degree tilt adjustment
while mounted in rack
Dry Erase Marker for EZ Identifying of
screens is included

SPECIFICATIONS
Display (Viewing Area)	5.8" (5.01" × 2.83")
Resolution (Pixels)	1200H × 234V
Dot Pitch	0.318mm × 0.307mm
Brightness (in cd/m²)	350
System	NTSC/PAL config. switch
Inputs per panel (total)	2 (6) Composite
Dimensions	19.125"W × 5.14"H × 2.5"D
Approx. Weight	5 lbs
Power Consumption	9 VDC, 3.0 Amps
