  • 8.4-Inch Dual Screen, TFT-MegaPixel SDI
Clearance

V-R82DP-2SDI-B

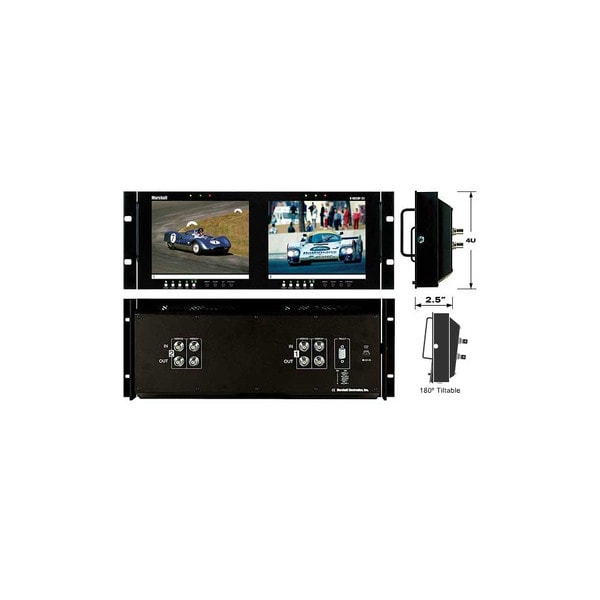

8.4-Inch Dual Screen, TFT-MegaPixel SDI
UPC # 801813122725
$899.00
Quantity discounts available
QtyPrice

B STOCK

  • High Resolution 8.4-inch screen 800 x 600 Dots with 1.44 million RGB pixels
  • 100% digital processing
  • High resolution scaling
  • Wide viewing radius - 130°
  • 500 cd/m² luminance
  • 500:1 contrast ratio
  • 4:3 and 16:9 screen aspect ratios
  • Direct access for all adjustments
  • Three color tally indicators
  • On-Screen Display (OSD)
  • Blue Gun for color adjustment
  • Adjustment Settings Memory
  • Underscan

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

SPECIFICATIONS
Display (Viewing Area)
8.4" diagonal (170.4mm W x 127.8mm H)
Resolution (Pixels)
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)
Dot Pitch
.213mm square pixel
Brightness (in cd/m²)
500
Contrast Ratio
500:1
System
NTSC/PAL auto recognition
Inputs per panel (total)
2 (4) SDI
Dimensions
19.12"W x 6.875"H x 1.5"D (485.7mm x 174.6mm x 38.1mm) 4RU
Approx. Weight
 5.4 lbs (2.4 kg)
Power Consumption
App. 36 Watt (5Amp 12 VDC Class 2 power supply included)
