V-RD151-P-B

15" Rack Mount, Pull-Out Drawer, with Built-in Quad Splitter

UPC # 801813116113

$499.00

Qty	Price

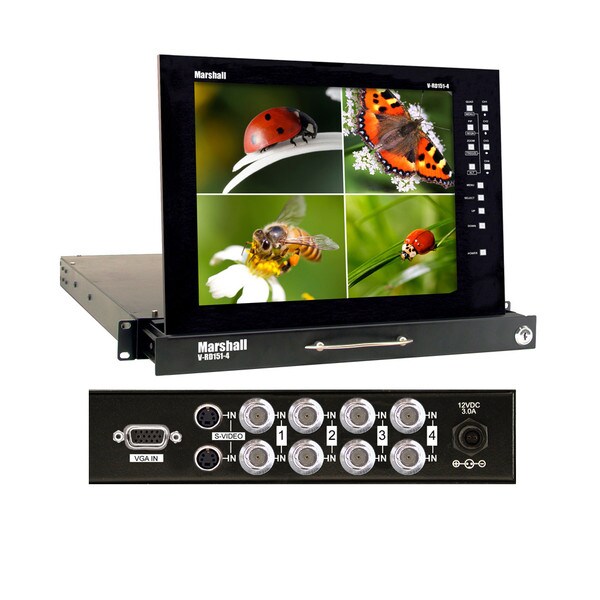

Save rack space with our monitor in a drawer model V-RD151P. A high-resolution 15" active matrix TFT display features CRT style viewing angles and is designed to collapse into a single 1RU high (1.75-inch) space when not in use. This model is often used in remote, ENG and EFP vehicles as a video and audio program monitor and provides large screen viewing of a video feed to a satellite uplink or for use with a laptop editing system.

Certified B-Stock and Demo Products

All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

V-RD151P specifications
Panel	Panel Size	15.1" Diagonal
	Resolution	1024 x RGB x 768
	Aspect Ratio	4:3 Native
	Active Area	(29.7cm x 23.1cm)
	Type	LCD Panel
	Brightness	250 cd/m²
	Contrast	500:1
	Color Gamut	YUV, RGB
	Viewing Angles (CR>=10)	170 In any direction
	Backlight type	LED
	Adjustable Backlight	No
Features	Video Formats	NTSC/PAL
	Loss of Input Curtain	Yes
	Self-Sensing	Yes
	Re-clocked/Re-Shaped	Yes
Input Connectors	CVBS	Yes
	S-Video	Yes
	VGA	Yes
Output Connectors	CVBS	Yes
	S-Video	Yes
	VGA	No
	Input Status Display	Yes
	Controls on front Panel	Yes
	User-Defined Function Buttons	Yes
	Handles/Rack Ears	Yes
	Consumption	12VDC, 5.0Amps peak
	Power Switch	Yes
	Connector	2-Pin Twist Lock
Compliance	Compliance	CE approved
Environmental	Operating Temperature (C°)	32°F to 120°F
	Storage Temperature (C°)	-4°F to 120°F
	Unit dimensions	19.12" W x 1.75" H x 22" D
	Weight (Main Body)	24.15 lbs
