Clearance

VS-370-X10

Name: D1 10X Vandal-Proof IP Speed Dome
SKU: VS370X10
Price: 199 USD
Availability: InStock

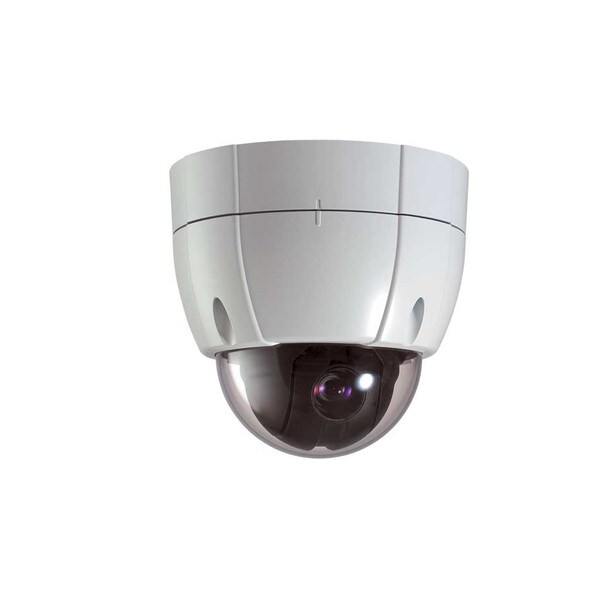

D1 10X Vandal-Proof IP Speed Dome

UPC # 801813151954

$199.00

Quantity discounts available

Qty	Price

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

Qty

Request Info

Specs

VS-370-X10 Specfications
Section		Specifications
Signal Format		NTSC / PAL
Camera	Image Sensor	1/4" Interline Transfer CCD
	Total Pixel	410K Pixels [811(H) x 508(V)]
	Total Pixel	470K Pixels [795(H) x 596(V)]
	Effective Pixel	380K Pixels [768(H) x 494(V)]
	Effective Pixel	440K Pixels [752(H) x 582(V)]
	H. Resolution	500 TV Lines(Color), 570 TV Lines(B/W)
	S/N Ratio	50dB (AGC Off)
	Zoom	X10 Optical Zoom and X10 Digital Zoom
	Focal Length	F1.8, f=3.8 ~ 38mm
	Min. Illuminance	0.7 Lux (Color) / 0.02 Lux (B/W) @ 50 IRE
	Day & Night	Auto / Day / Night (IR Cut Filter)
	Focus	Auto / Manual / Semi-Auto
	Iris	Auto / Manual
	Shutter Speed	x128 ~ 1/120000 sec
	AGC	Normal / High / Off
	White Balance	Auto / Manual (Red & Blue Gain Adjustable)
	BLC	Low / Middle / High / Off
	Flickerless	Selectable
	SSNR	Low / Middle / High / Off
	Other Functions	Frame Freeze Function, System Image Flip by Installation Type
Video
	Standards	H.264 Compression algorithm (VS-270-X10)
	Standards	Primary: H.264, Secondary: H.264 MJPEG
	Bitrate	32 ~ 10,240 Kbps
	Resolution	NTSC : 720x480, 720x240, 352x480, 352x240
	Resolution	PAL : 720x576, 720x288, 352x576, 352x288
	Max Frame Rate	NTSC : Max 30fps / PAL : Max 25fps
	Frame Rate Range	NTSC : 0.2 ~ 30fps / PAL : 0.2 ~ 25fps
Network	Network Interface	Ethernet 10/100Base-T (RJ-45)
Network	Network Protocol	TCP/IP, UDP, Multicast, DHCP, SMTP,HTTP, SNMP, RTP, RTSP
Pan/Tilt	Range	Pan : 360°(Endless)
	Range	Tilt : 180°(Auto-Flip On) , 95°(Auto-Flip Off)
	Pan/Tilt Speed	Preset : 360°/ sec
		Manual : 0.05°~ 360°/ sec (Zoom Proportional)
		Swing : 1°~ 180°/ sec
	Preset	128 x Presets with Labels / Independent Preset Characteristic Setup
	Other Functions	Image Auto Flip, Auto Parking, Power-up Action
Audio	Sample Rate	G711: 8kHz, ACC: 32kHz
	Input	1 x Line-In (RCA, Mono)
	Output	1 x Line-Out (RCA, Mono)
	Bitrate	G.711: 64Kbps, AAC: 64Kbps, 128Kbps
Software	VS Manager/VMS-16 NVR	Live Monitoring, Recording, Search & Playback, Backup
Physical
	Communication	1 x RS-485
	Protocol	Pelco-D, Pelco-P Selectable
	Privacy Zone	4 x Zones
	OSD	English On / Off
	Power	DC Type : DC 12V / 2.5 A
	Power Consumption	Max 25W
	Dimensions	Dome: ø 115 mm / 4.5"
	Dimensions	Housing: 168(ø) x 160.5(H) mm / 6.6" (ø) x 6.3" (H)
	Weight	Approx. 2.2 Kg / 4.8 lbs
	Operating Temp.	0° C ~ 40°C / 32°F ~ 104°F
