Clearance

VS-370-X12

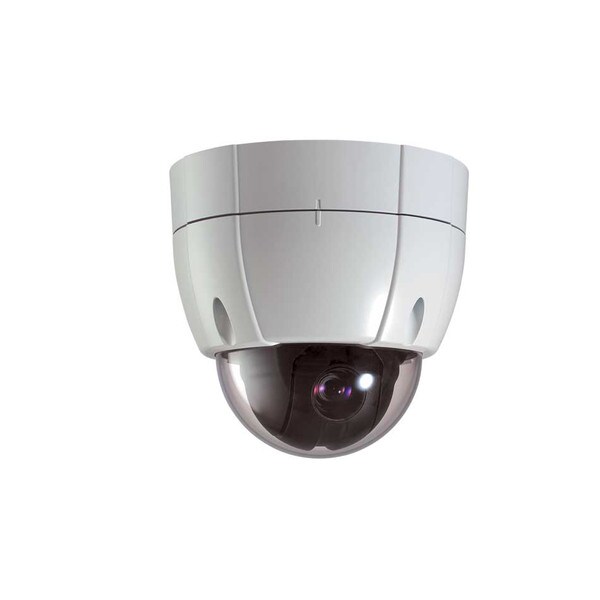

Name: VS-370-X12 - D1 12X Zoom Speed Dome Camera
SKU: VS370X12
Price: 199 USD
Availability: InStock

VS-370-X12 - D1 12X Zoom Speed Dome Camera

UPC # 801813166446

$199.00

Quantity discounts available

Qty	Price

B STOCK

Certified B-Stock and Demo Products
All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

Qty

Request Info

Specs

1/4" Interline transfer CCD (811 x 508)
D1 Video resolution
100x Zoom Control (Optical 12x, Digital 10x)
H.264 & H.264 MPEG Dual Streaming
12x Optical Zoom (F1.8, f=3.8-38mm)
Two-Way Audio Communication (G.711/AAC)
True Day & Night (Motorized IR Cut Filter)
WDR (Wide Dynamic Range)
Vandal-Proof, IP66-Rated Dome
Built-in Fan / Heater
Fast & Smooth Pan Motion with 360° Continues Rotation
Low Noise & Vibration
Lightning Speed (Max 60°/sec) & smooth manual speed (Min.0.05°/sec)
128 Presets, 8 Swings, 4 Patterns, 8 Groups
RS-485 Communication, Pelco D or Pelco P Protocol
Integrated Video Motion Detection
Motion Sensor Input & Alarm Output
Various Protocols: TCP/IP, Multicast, UDP, HTTP, SMTP, FTP,
DHCP, DNS, Dynamic DNS, RTP, RTSP, SNMP
PSIA and ONVIF compliant
SDK & API Available

VS-370-X10 Specfications
Section		Specifications
Signal Format		NTSC / PAL
Camera	Image Sensor	1/4" Interline Transfer CCD
	Total Pixel	410K Pixels [811(H) x 508(V)]
	Total Pixel	470K Pixels [795(H) x 596(V)]
	Effective Pixel	380K Pixels [768(H) x 494(V)]
	Effective Pixel	440K Pixels [752(H) x 582(V)]
	H. Resolution	500 TV Lines(Color), 570 TV Lines(B/W)
	S/N Ratio	50dB (AGC Off)
	Zoom	X10 Optical Zoom and X10 Digital Zoom
	Focal Length	F1.8, f=3.8 ~ 38mm
	Min. Illuminance	0.7 Lux (Color) / 0.02 Lux (B/W) @ 50 IRE
	Day & Night	Auto / Day / Night (IR Cut Filter)
	Focus	Auto / Manual / Semi-Auto
	Iris	Auto / Manual
	Shutter Speed	x128 ~ 1/120000 sec
	AGC	Normal / High / Off
	White Balance	Auto / Manual (Red & Blue Gain Adjustable)
	BLC	Low / Middle / High / Off
	Flickerless	Selectable
	SSNR	Low / Middle / High / Off
	Other Functions	Frame Freeze Function, System Image Flip by Installation Type
Video
	Standards	H.264 Compression algorithm (VS-270-X10)
	Standards	Primary: H.264, Secondary: H.264 MJPEG
	Bitrate	32 ~ 10,240 Kbps
	Resolution	NTSC : 720x480, 720x240, 352x480, 352x240
	Resolution	PAL : 720x576, 720x288, 352x576, 352x288
	Max Frame Rate	NTSC : Max 30fps / PAL : Max 25fps
	Frame Rate Range	NTSC : 0.2 ~ 30fps / PAL : 0.2 ~ 25fps
Network	Network Interface	Ethernet 10/100Base-T (RJ-45)
Network	Network Protocol	TCP/IP, UDP, Multicast, DHCP, SMTP,HTTP, SNMP, RTP, RTSP
Pan/Tilt	Range	Pan : 360°(Endless)
	Range	Tilt : 180°(Auto-Flip On) , 95°(Auto-Flip Off)
	Pan/Tilt Speed	Preset : 360°/ sec
		Manual : 0.05°~ 360°/ sec (Zoom Proportional)
		Swing : 1°~ 180°/ sec
	Preset	128 x Presets with Labels / Independent Preset Characteristic Setup
	Other Functions	Image Auto Flip, Auto Parking, Power-up Action
Audio	Sample Rate	G711: 8kHz, ACC: 32kHz
	Input	1 x Line-In (RCA, Mono)
	Output	1 x Line-Out (RCA, Mono)
	Bitrate	G.711: 64Kbps, AAC: 64Kbps, 128Kbps
Software	VS Manager/VMS-16 NVR	Live Monitoring, Recording, Search & Playback, Backup
Physical
	Communication	1 x RS-485
	Protocol	Pelco-D, Pelco-P Selectable
	Privacy Zone	4 x Zones
	OSD	English On / Off
	Power	DC Type : DC 12V / 2.5 A
	Power Consumption	Max 25W
	Dimensions	Dome: ø 115 mm / 4.5"
	Dimensions	Housing: 168(ø) x 160.5(H) mm / 6.6" (ø) x 6.3" (H)
	Weight	Approx. 2.2 Kg / 4.8 lbs
	Operating Temp.	0° C ~ 40°C / 32°F ~ 104°F
