Clearance

VS-370-X27

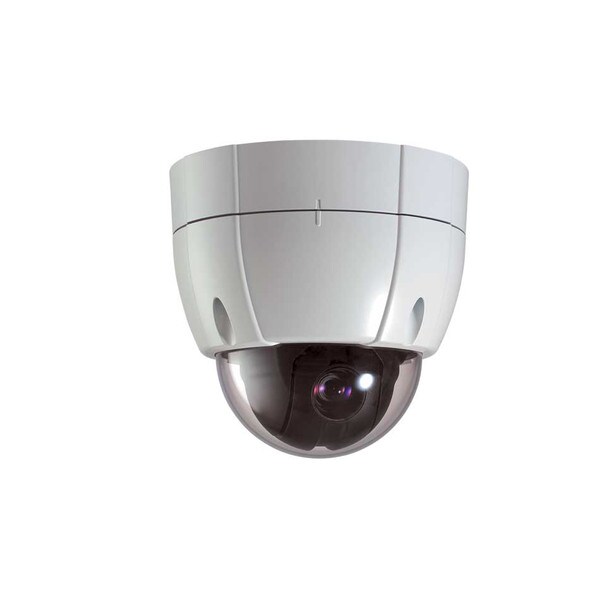

D1 27X IP SPEED DOME Camera

UPC # 801813151961

$199.00

Qty	Price

B STOCK

Certified B-Stock and Demo Products
Marshall B-stock and Demo products are repackaged used units that have gone through Marshall Quality Control assurance and have been certified for resell. All certified products come with original accessories and a limited 90-day warranty.

Qty

Request Info

Specs

1/4" Interline transfer CCD (811 x 508)
D1 Video resolution
324x Zoom Control (Optical 27x, Digital 12x)
H.264 & H.264 MPEG Dual Streaming
Two-Way Audio Communication (G.711/AAC)
True Day & Night (Motorized IR Cut Filter)
WDR (Wide Dynamic Range)
Vandal-Proof, IP66-Rated Dome
Built-in Fan / Heater
Fast & Smooth Pan Motion with 360° Continues Rotation
Low Noise & Low Vibration
Lightning Speed (Max 60°/sec) & smooth manual speed (Min.0.05°/sec)
128 Presets, 8 Swings, 4 Patterns, 8 Groups
RS-485 Communication, Pelco D or Pelco P Protocol
Integrated Video Motion Detection
Motion Sensor Input & Alarm Output
Various Protocols: TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS,
Dynamic DNS, RTP, RTSP, SNMP
PSIA and ONVIF compliant
SDK & API Available

VS-370-X27 Specfications
Section Specifications
Network Network Interface Ethernet 10/100Base-T (RJ-45)
Network Protocol TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP
Camera Image Sensor 1/4" Solid State Progressive CCD Scan
Focal Length F1.6~F2.8, f=4.7mm~84.6mm
Zoom 18x Optical Zoom
Focus Length ? ~ 1.0m(Tele) ~ 0.01m(Wide)
Angle of View Horizontal: 55.2(Wide) ~ 3.2(Tele)
Min. Illuminance 0.5 Lux (Color) / 0.02 Lux (B/W), F1.6, 50 IRE, 1/4s, 28 dB
AE Mode AE / AER / AE+ / AER+ / Shutter / Exposure / AGC
S/N Ratio 50 dB or more
IRIS Control Auto / Manual (F1.6 ~ F34)
Gain Control Auto / Manual (0 ~ 30 dB)
Shutter Control Auto / Manual (1/4 ~ 1/10,000 sec)
White Balance Auto / Manual (Red, Blue Gain Adjustable)
DSS Limit 2x / 4x/ 8x Fields
Day & Night (ICR) Auto / Manual (ICR)
BLC Auto / Manual, 256 Levels
WDR On / Off
Privacy Mask 4 Masks
Pan/Tilt Range Pan: 360°(Endless) / Tilt: 90°
Pan/Tilt Speed Preset: 360°/ sec
Manual: 0.05°~ 360°/ sec (Zoom Proportional)
Swing: 1.4°~ 180°/ sec
Preset 98 Presets
Pattern 4 Patterns (Approx. 5 Minutes for Each Pattern)
Swing 8 Swings
Group 8 Groups (MAX. 20 Entries for Each Group)
Other Functions Auto Flip, Freeze on Preset, Auto Parking, Power-up Action
Video
Standards Main Stream: H.264
Secondary Stream: H.264 MJPEG
Output 1 x Composite (BNC type) or 1 x HD-SDI (BNC type) (Choose one option)
Resolution 720 x 480 ~ 352 x 240, 13 resolution steps
Max Frame Rate H.264 MJPEG: 20fps @ 1280 x 960, 30fps @ 1280 x 720 ~ 352 x 240
Bitrate 32 ~ 10,240 Kbps
Audio
Algorithm G.711/AAC
Input 1 x Line-In (Mini-stereo, Single Mono)
Output 1 x Line-Out (Mini-stereo, Single Mono)
Sample Rate G.711: 8kHz, AAC: 32kHz
Bitrate G.711: 64Kbps, AAC: 64Kbps, 128Kbps
Serial Port
Port RS-485 for PTZ control
Protocol Pelco-D, Pelco-P
Sensor/Alarm
Sensor Input 2 x Photo-Coupler Input
Alarm Output 2 x Relay Output (Normal Open)
Reset Button Factory Reset Button
Software VS Manager/VMS-16 NVR Live Monitoring, Recording, Search & Playback, Backup
Physical
Mount Bracket Wall Mount or Ceiling Mount (Option)
Dimensions Dome: ø150mm / ø5.9"
Housing: 185(ø) x 193.5(H)mm / 7.3"(ø) x 7.6"(H)
Weight Approx. 3.8 kg/8.4 lbs (Wall) Approx. 3.2 kg/7.0 lbs (Ceiling)
Material Dome: Polycarbonate / Housing: Aluminum
Power DC 12V/3A
Power Consumption Max 36W
Waterproof IP67
Fan Always ON
Operating Temp. -30° C ~ 60°C / -34°F ~ 140°F

Section		Specifications
Network	Network Interface	Ethernet 10/100Base-T (RJ-45)
Network	Network Protocol	TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP
Camera	Image Sensor	1/4" Solid State Progressive CCD Scan
	Focal Length	F1.6~F2.8, f=4.7mm~84.6mm
	Zoom	18x Optical Zoom
	Focus Length	? ~ 1.0m(Tele) ~ 0.01m(Wide)
	Angle of View	Horizontal: 55.2(Wide) ~ 3.2(Tele)

	Min. Illuminance	0.5 Lux (Color) / 0.02 Lux (B/W), F1.6, 50 IRE, 1/4s, 28 dB
	AE Mode	AE / AER / AE+ / AER+ / Shutter / Exposure / AGC
	S/N Ratio	50 dB or more
	IRIS Control	Auto / Manual (F1.6 ~ F34)
	Gain Control	Auto / Manual (0 ~ 30 dB)
	Shutter Control	Auto / Manual (1/4 ~ 1/10,000 sec)
	White Balance	Auto / Manual (Red, Blue Gain Adjustable)
	DSS Limit	2x / 4x/ 8x Fields
	Day & Night (ICR)	Auto / Manual (ICR)
	BLC	Auto / Manual, 256 Levels
	WDR	On / Off
	Privacy Mask	4 Masks
Pan/Tilt	Range	Pan: 360°(Endless) / Tilt: 90°
	Pan/Tilt Speed	Preset: 360°/ sec
		Manual: 0.05°~ 360°/ sec (Zoom Proportional)
		Swing: 1.4°~ 180°/ sec
	Preset	98 Presets
	Pattern	4 Patterns (Approx. 5 Minutes for Each Pattern)
	Swing	8 Swings
	Group	8 Groups (MAX. 20 Entries for Each Group)
	Other Functions	Auto Flip, Freeze on Preset, Auto Parking, Power-up Action
Video
	Standards	Main Stream: H.264
	Standards	Secondary Stream: H.264 MJPEG
	Output	1 x Composite (BNC type) or 1 x HD-SDI (BNC type) (Choose one option)
	Resolution	720 x 480 ~ 352 x 240, 13 resolution steps
	Max Frame Rate	H.264 MJPEG: 20fps @ 1280 x 960, 30fps @ 1280 x 720 ~ 352 x 240
	Bitrate	32 ~ 10,240 Kbps
Audio
	Algorithm	G.711/AAC
	Input	1 x Line-In (Mini-stereo, Single Mono)
	Output	1 x Line-Out (Mini-stereo, Single Mono)
	Sample Rate	G.711: 8kHz, AAC: 32kHz
	Bitrate	G.711: 64Kbps, AAC: 64Kbps, 128Kbps
Serial Port
	Port	RS-485 for PTZ control
	Protocol	Pelco-D, Pelco-P
Sensor/Alarm
	Sensor Input	2 x Photo-Coupler Input
	Alarm Output	2 x Relay Output (Normal Open)
	Reset Button	Factory Reset Button
Software	VS Manager/VMS-16 NVR	Live Monitoring, Recording, Search & Playback, Backup
Physical
	Mount Bracket	Wall Mount or Ceiling Mount (Option)
	Dimensions	Dome: ø150mm / ø5.9"
	Dimensions	Housing: 185(ø) x 193.5(H)mm / 7.3"(ø) x 7.6"(H)
	Weight	Approx. 3.8 kg/8.4 lbs (Wall) Approx. 3.2 kg/7.0 lbs (Ceiling)
	Material	Dome: Polycarbonate / Housing: Aluminum
	Power	DC 12V/3A
	Power Consumption	Max 36W
	Waterproof	IP67
	Fan	Always ON
	Operating Temp.	-30° C ~ 60°C / -34°F ~ 140°F
