Clearance

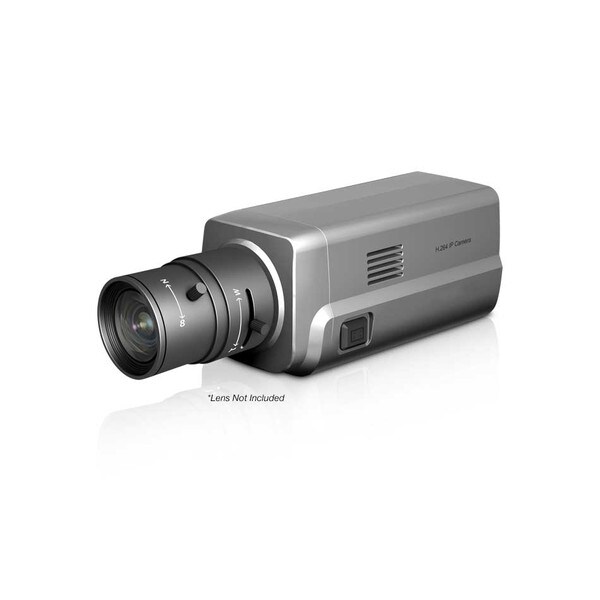

VS-6300
3MP IP Box Camera PoE - B STOCK
UPC # 801813152005
Section | Specifications | |
| Network | Network Interface | Ethernet 10/100Base-T (RJ-45) |
| Network Protocol | TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP | |
| Camera | Image Sensor | 1/3" CMOS Image sensor |
| Lens | C/CS Mount selectable (Lens is not included) | |
| Max. Aperture Ratio | 1:1.8 | |
| Motion Image Stablizer | On/Off | |
| Back Light compensation | On/Off | |
| Flip | Vertical Flip, Horizontal Flip | |
| Exposure | Flickerless, Metering, Mode, Aperture, Shutter Speed, Brightness | |
| Focus | Focus Range, Zoom Tracking | |
| White Balance Index | Auto, Indoor, Outdoor | |
| Image Quality | Sharpness, DNR, Chroma CR, Chroma CB, Hue CR, Hue CB | |
| Motion Detection | On/Off | |
| Video | ||
| Standards | Main Stream: H.264 | |
| Secondary Stream: H.264/MJPEG | ||
| Resolution | 2048 x 1536, 2048 x 1080 ~ 176 x 120 | |
| Max Frame Rate | MJPEG: 25fps @ 2048 x 1536, 30fps@2048 x 1080 ~ 176 x 120 | |
| H.264: 15fps @ 2048 x 1536, 30fps @ 2048 x 1080 ~ 176 x 120 | ||
| Bitrate | 32 ~ 10,240 Kbps | |
| Audio | Algorithm | G.711, AAC |
| Input | 1 x Line-In (Mini-Stereo) | |
| Output | 1 x Line-Out (Mini-Stereo) | |
| Sample Rate | G.711: 8kHz / AAC: 32kHz | |
| Bitrate | G.711: 64Kbps / AAC: 64Kbps, 128Kbps | |
| Serial | Port | 1 x RS-485 |
| Data Rate | 2,400bps ~ 115,200bps | |
| Sensor/Alarm/etc. | Sensor Input | 1 x NO Contact |
| Alarm Output | 1 x NO Contact | |
| Reset Button | 1 x Factory Reset Button | |
| User Interface | System Status | LED |
| Software | True NVR/CMS | Live Monitoring, Recording, Search & Playback, Backup |
| Physical | ||
| Dimensions | 103.5(W)mm x 70.3(L)mm x 70.6(H)mm | |
| Weight | 437.0 g (without Lens) | |
| Power Source | DC 12V/0.5A | |
| PoE: 802.3af | ||
| Power Consumption | Max 6W | |
