  • Super Low Light Vandal Dome Camera B STOCK
Clearance

VS-6502-IR

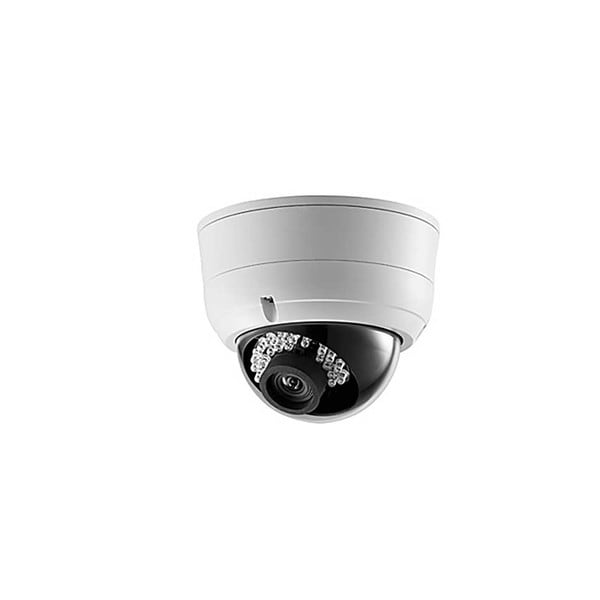

Super Low Light Vandal Dome Camera B STOCK
UPC # 801813162141
$199.00
Quantity discounts available
QtyPrice

B-STOCK

  • WDR (Wide Dynamic Range)
  • 2048 x 1536
  • Superior Low Light Performance
  • Dual Streaming (H.264/H.264, H.264/MJPEG)
  • PoE(Power over Ethernet): 802.3af
  • Composite video output
  • 3-Axis internal camera bracket
  • SD/SDHC slot for local storage
  • Compliant with ONVIF, PSIA

Certified B-Stock and Demo Products
All “B” stock, “DEMO” stock, EOL, Obsolete products will have limited one year warranty. Marshall Electronics is not covering any cost associated with removal of the product, reinstallation, and other associated damages

VS-6502 / 6502IR Specifications
Camera Image sensor 3.0 Megapixel - 1/2.8" Sony CMOS Progressive Scan Sensor
Synchronization Internal
Minimum Illumination 0.03 Lux (color), 0.02 Lux (B/W) with 50IRE
Eletronic shutter speed 1/30 ~ 1 sec (B/W) / 1/30 ~ 1/10,000 sec (color)
Image Enhancement Automatic gain control Auto, Manual
AE control Auto, Manual
White balance mode AWB
True Day & Night (TDN) Auto, Day, Night, Threshold (Night to Day)
WDR (Wide Dynamic Range) Supports
Digital noise reduction (filter) On/Off
Flickerless (Frequency mode) 50Hz, 60Hz
On-screen display English
Motion detection Supports
Image adjustmentBrightness
Flip mode Horizontal, Vertical
Lens Lens type Auto DC
Digital zoom Supports
Focal length f=3 ~ 9mm, auto iris varifocal lens, IR cut filter
Maximum aperture ratio F1.4
Angle of view Horizontal: 92.9(wide) ~ 31.7(tele), Vertical: 67.9(wide) ~ 23.7(tele)
IR LEDVS-6502 - Not available,
VS-6502IR - 470nm, 24Pcs
Video Video compression H.264 HP Level 4
Frame rate 15fps (2048x1536), 30fps (1920x1080)
Bitrate Pri: 32Kbps ~ 10Mbps, Sec: 32Kbps ~ 2Mbps
Resolutions (Max) 2048 x 1536
Video streaming Primary: H.264, Secondary: H.264, MJPEG
Video output Composite
Backup SD card, FTP
Audio Audio compression G.711, AAC
Audio sampling rate G.711: 8KHz, AAC: 32KHz
Audio input/output 1 x line-in (stereo), 1 x line-out (stereo)
Integration Interface API SDK, PSIA, OnVIF
Serial connectors 1 x RS-485
Sensor input 1 x NO Contact
Alarm output 1 x NO Contact
Network Network interface Ethernet 10/100Base-T (RJ-45)
Network protocol TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, HTTPS, SNMP, RTP, RTSP, UPnP, WS-Disconvery, Zero Configuration, DDNS
General Ingress protection rating IP 66
Certifications CE, FCC
Power supply DC 12V/0.5A, PoE (Power over Ethernet): 802.3af
Operating temperature -10°C ~ 50°C ( 14°F ~ 122°F )
Dimension 100Ø x 49.2 for Vandal Dome, 148Ø x 72.6 for Base (121.8 H)mm
3.94Ø x 1.94 for Vandal Dome, 5.83Ø x 2.86 for Base (4.8 H)in
Weight 1012g / 2.23lb
